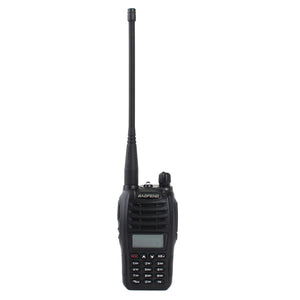

Baofeng UV-B6 Dual Band Handheld Transceiver Radio Walkie Talkie
Tax included.
Description :
Baofeng UV-B6 Dual Band Handheld Transceiver Radio Walkie Talkie
Brand Name : Baofeng
Model Number : UV-B6
Type : Two Way Radio
Talk Range : 3-8KM
Storage Channel : 99
Dimensions : 116.2 x 57.9 x 35.7mm
Frequency Range : VHF136-174MHz & UHF 400-470MHz
Specifications :
| BaoFeng Model | UV-B6 |
| Inductively loaded antenna | Yes |
| Antenna Impedance | 50 ohm |
| Working temperature | -20 ~ +60°C |
| Rated Voltage | DC 7.4V ±10% |
| Max output power | 5W |
| Battery type | Li-ion battery |
| Battery capacity | 2000mAh |
| Dimension | 38 x 58 x 120mm(not antenna) |
| Color | Black |
| Weight | 210g(Included Antenna) |
| Dual band or Single band | Dual band |
| Dual frequency or Single frequency | Dual frequency |
| Frequency Range | UHF: 400-470MHz + VHF: 136-174MHz |
| FM radio | Yes(65-108MHz) |
| Memory Channels | 99 groups |
| Working manner | Simple or semi-duplex |
| Standby time | 110 h |
| Channel step | 5/6.25//10/12.5/20/25kHz |
| Wide/Narrow Band | 25kHz/12.5kHz |
| DCS/CTCSS codec | 104-DCS, 50-CTCSS |
| Busy channel lock | Yes |
| Channel mode display | Yes |
| VOX function | Yes |
| Tone tail eliminate | Yes |
| Scanning function | Yes |
| Monitor function | Yes |
| TOT function | Yes |
| DTMF tone | Yes |
| Lower power/lower voltage prompt | Yes |
| Auto-power off | Yes |
| PTT-ID function | Yes |
| Reverse Frequency | Yes |
| Single working alarm | Yes |
| Alarm function | Yes |
| LED flashlight | Yes |
| Power saving function | Yes |
| High/Low TX power selectable | Yes(5W/1W) |
| Chinese & English voice prompt | Yes |
| PC software programmable | Yes |
| Frequency stability | 2.5ppm |
| Modulation ( wide band, narrow band ) | 16KøF3E/11KøF3E |
| Max frequency deviation ( wide band, narrow band ) | <±5kHz/<±2.5KHz |
| Spurious radiation | <7.5µW |
| Sensitivity | -122dBm(12dB SINAD) |
| Silent sensitivity | <0.2µV |
| Audio Power | 1W |
| Intermodulation | 65dB |
| Adjacent channel selectivity | 65dB/60dB |
| Spurious rejection | 65dB |
| Spurious current | <380mA |
Package included :
1 x Baofeng UV-B6 Handheld Walkie Talkie
1 x 7.4V 2000mah Li-ion Battery Pack
1 x Dual Band Antenna
1 x Belt Clip
1 x English User Manual
1 x Desktop Charger
