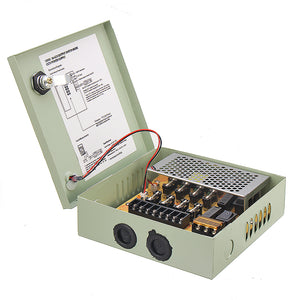

AC220-240V to DC12V 5A 4 Road 4CH 60W AC-DC Power Supply Module Box 162*162*50mm
Tax included.
Product Description:
Package includes:
1 x Power Supply Box
Project | Technical indicators | unit | Remarks | ||
Basic requirements | 12V 5A 4 road 60W | Multi-channel chassis | |||
Dimensions | 165*165*45 | mm | |||
Environmental Condition | |||||
Operating temperature | -10 ° C ~ +50 ° C, 20% ~ 95% RH (no condensation) | ??/span> | |||
Storage temperature | -20 ° C ~ +85 ° C, 20% ~ 95% RH (no condensation) | ??/span> | |||
Temperature Coefficient | 0.02~0.05%/°C | ||||
Heat dissipation method | Natural cooling | ||||
Input Characteristics | |||||
Rated voltage range | 220VAC | V | AC | ||
Input voltage range | 220-240V | V | AC | ||
Input frequency range | 50 to 60 Hz | Hz | Except DC input | ||
Input undervoltage protection | 115 to 150% intermittent mode | V | |||
Input undervoltage recovery | Automatic recovery after power failure | V | |||
Input overvoltage protection | 115 to 150% intermittent mode | V | |||
Input overvoltage recovery | Automatic recovery after power failure | V | |||
Electric shock | ≤1% | A | Maximum input voltage full load | ||
Machine efficiency | ≤0.5% | % | Rated input full load | ||
Output Characteristics | |||||
Output voltage range | 12V±0.5% | V | 4 outputs | ||
Single output current | 1.25A | A | Max 5A | ||
Ripple and noise | ≤150 | mVp-p | |||
Rise Time | ≤50 | ms | |||
Output delay | ≤5 | S | |||
Voltage regulation | ≤0.5 | % | |||
Load adjustment rate | ≤1% | % | |||
Protection Characteristics | |||||
Output overcurrent protection | Current drooping | ||||
Output short circuit protection | IGBT | ||||
Output overvoltage protection | Soft start protection | ||||
Safety and EMC Characteristics | |||||
Insulation resistance | Input to output | >30MΩ | |||
Input to the earth | >30MΩ | ||||
Output to the earth | >30MΩ | ||||
Insulation resistance | >50MΩ | ||||
Reliability Requirements | |||||
MTBF | 100,000 | H |
Package includes:
1 x Power Supply Box
