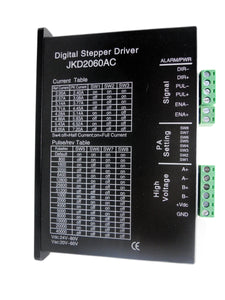

JKM JKD2060AC Two Phase Stepper Motor Driver Digital Stepper Driver 2.0A-6.0A DC 24-80V
Tax included.
Description:
JKM JKD2060AC Two Phase Stepper Motor Driver Digital Stepper Driver 2.0A-6.0A DC 24-80V
Specification:
Feature:
Average current control, two phase sinusoidal current output.
Photoelectric isolation signal input and output.
With overvoltage , undervoltage , over-current , interphase short circuit protection function.
Eight channels subdivison and automatic idle-current reduction.
Eight channels output phase current setting.
Current Setting:
Subdivision Adjustment:
Signal Indication:
Mechanical Dimension:
Package Included:
1 x Motor Driver
More Details:
JKM JKD2060AC Two Phase Stepper Motor Driver Digital Stepper Driver 2.0A-6.0A DC 24-80V
Specification:
Type | JKD2060AC |
DC Input Voltage | 24V-80V |
AC Input Voltage | 20-60V |
Output Current | 2.0 A - 6.0A |
Operating Temperature | -10° - 45° |
Storage Temperature | -20° - 125° |
Weight | 600g |
Humidity | No condensation, no water droplets |
Gas | Prohibition of combustible gasses and conductive dust |
Feature:
Average current control, two phase sinusoidal current output.
Photoelectric isolation signal input and output.
With overvoltage , undervoltage , over-current , interphase short circuit protection function.
Eight channels subdivison and automatic idle-current reduction.
Eight channels output phase current setting.
Current Setting:
REF | Peak | SW1 | SW2 | SW3 |
2.00A | 2.40A | on | on | on |
2.57A | 3.08A | off | on | on |
3.14A | 3.77A | on | off | on |
3.71A | 4.45A | off | off | on |
4.28A | 5.14A | on | on | off |
4.86A | 5.83A | on | on | off |
5.43A | 6.52A | on | off | off |
6.00A | 7.20A | off | off | off |
Subdivision Adjustment:
SW5 | SW6 | SW7 | SW8 | |
Default | on | on | on | on |
400 | off | on | on | on |
800 | on | off | on | on |
1600 | off | off | on | on |
3200 | on | on | off | on |
6400 | off | on | off | on |
12800 | on | off | off | on |
25600 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |
Signal Indication:
Phenomenon | Reasons | Solution |
When the indicator light is red | The wire of motor shorted out. | Cheak or change the wire. |
The external voltage is over or under the working voltage of the motor driver. | Adjust the voltage into proper ranges. |
Mechanical Dimension:
Package Included:
1 x Motor Driver
