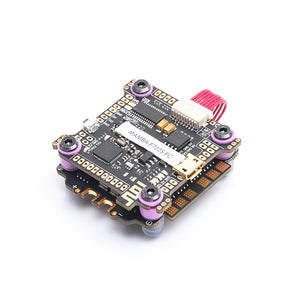

MAMBA F722S Betaflight Flight Controller OSD 5/9V 2A BEC & F50PRO 50A 3-6S Blheli_32 Dshot1200 FPV Racing Brushless ESC for RC Drone
Tax included.
MAMBA F722S Flight Controller OSD & F50PRO 50A 3-6S Dshot1200 FPV Racing Brushless ESC for RC Drone
Note: The ESC has upgraded to F50PRO and optimized the circuit board.
FC Specifications:
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Stat us,,Green 9V,White 5V,Red 3.3V
Controller: 4 Set 2812 LED
Bluetooth: SpeedyBee APP
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)
ESC Specifications:
F50PRO
Package Included:
1 x MAMBA F722S Flight Controller
1 x MAMBA F50PRO 50A 3-6S Dshot1200 4IN1 ESC
Note: The ESC has upgraded to F50PRO and optimized the circuit board.
FC Specifications:
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Stat us,,Green 9V,White 5V,Red 3.3V
Controller: 4 Set 2812 LED
Bluetooth: SpeedyBee APP
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)
ESC Specifications:
F50PRO
INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
CONTINUE CURRENT: 50A×4
BURST CURRENT: 55A (10S)
BEC: NO
SOFT: Dshot300/600/1200
MOUNTING: 30.5mm/M3
Supply : Panasonic High Frequency 470uF/35V
Weight: 11.5g (ESC) 3.1g (Cooling fin)
Size: 36.5×46.5×6.4mm
Weight: 11.5g (ESC) 3.1g (Cooling fin)
Size: 36.5×46.5×6.4mm
Package Included:
1 x MAMBA F722S Flight Controller
1 x MAMBA F50PRO 50A 3-6S Dshot1200 4IN1 ESC
