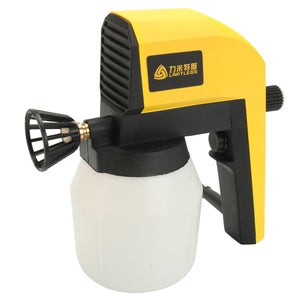

100W Electric Spray Gun 1000ml Paint Sprayer PRO Premium Wagner Electric Paint Airless Sprayer
Electric Paint Sprayer Hand Held Airless Spray Gun Painter Painting 100ml
Specifications:
Material:plastic
Spray distance:100mm
Nozzle diameter:0.6mm
Paint spray volume:100ml/s
Power:100w
Package size:about 24*12*24.5cm
Item Size:about 23*12*23cm
The width refer to the middle part max width, not bottom diameter. for the basket is in pear shape.
Package included:
1X Spray Gun
1XFunnel
1XSpring
More detials:
Use operation:
For automotive parts, switchboards, control panels, heavy machinery, household appliances parts, steel furniture, wood products, gold-plated protection, knitted fabrics (cloth), garment dyeing and finishing, suits, screen, printing, , Advertising, IC version of the industry decontamination tools, and so on!
1, filled with liquid spray bottle. Connected to the 220V power supply, press the switch, the gun is activated, a strong vibration impact sound, a few seconds after the start of injection, and converted to a low normal working sound.
2, such as the start after the failure to work properly, then try the back of the knob, the method is: first turn the knob into the slowly retreat, hand pressure test at a distance of 50cm from the spout, with strong Ma Zhen. (Note: After adjusting, usually do not just go to adjust)
3, decontamination effective distance between the nozzle and the object 10-15cm, 45 degrees down angle operation, repeatedly spray to remove stains so far.
maintenance:
1, spray gun sustainable operation, but also pay attention to moderation, so as not to overheat damage.
2, the sound is normal but no jet, or jet ineffective, the loose nozzle is blocked, unscrew the nozzle, clean out debris, or gently twist the needle with a small needle from the inside out.
3, normal injection, but it seems inadequate pressure or instability, you can open the handle cover, check the pump tight gong wire is loose.
4, after the job is completed, need to spray for a few seconds to empty, the liquid spray inside the pump, then pour a few drops of oil from the hole and then spray a few seconds empty spray.
Tips:
spray the paint: the basic flow of liquid can be spray, the consistency of certain requirements, there is a funnel accessories, filled funnel, 50 seconds to flow can be finished on this paint can be sprayed, Otherwise, you need to be diluted.
After each work is completed, it is necessary to add a thinner (such as banana water) to the tank and spray the residual paint on the tank and muzzle several times with thinner. This next use, the gun nozzle will not block.
