10A Relay 12V 4CH Channel 433MHZ Wireless Remote Control Switch Receiver Board with Remote
Tax included.
Specifications:
Input Voltage: DC10-14V
Standby Current: <5MA
RF Frequency: 433MHZ
RF Working mode: Super heterodyne receiver
Receiver Sensitivity: >98dBm
Remote Control Distance: >100 meter(In open environment)
Decoding Way: MCU Software decoding
Can store the number of remote control: 50
Support remote control type: Fixed code, learning code
Channel: 4CH
Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
Wiring Method: Fixed wiring terminal
Working Voltage: DC12V
Output Current: 10A
Output: Normally open,Common,Normally closed
Size: 50x70x25mm
How to use:
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4. Delay: Press remote control 's one button,relay is working,release the remote control and begin timekeeping,after 5s/10s/15s will automatically close the relay
Learn:
1. Press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control (press 1 times to learn Momentary; 2times-Toggle;3times-Latched;4times-5s delay;5times-10s delay;6times-15s delay)
the indicator flash 2 times and off .it mean you learn it successfully .
2. It can learn 2272 2262 or 1527 chip with the different code wireless 315MHz remote control
Remove/clean:
Press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .

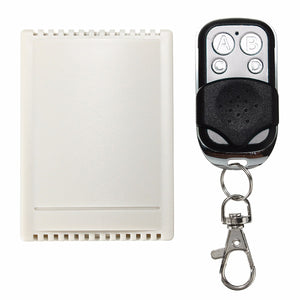

Package Included:
1 x 12V Wireless Relay Switch
1 x Remote
