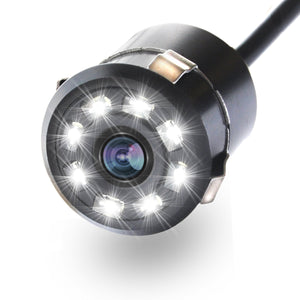

170 Waterproof 8 LED HD CCD Car Backup Car Rear View Camera Night Vision
Tax included.
Feature:
1.8 infrared night vision LED
2.Waterproof, anti-shock
3.Simple installation
4.170 degree wide viewing angle
5.Die cast metal housing
6.Small and compact design
7.Completely waterproof housing
8.Universal wireless rearview backup camera
9.Mount the camera to your car's license plate area/back window, or any other suitable place
Specification:
Installation:
1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
3.Connect the video cable of the camera to the extension cord.
4.Connect the extension cable to the car monitor.
5.You will see the images when your car is in reverse shift.
Package Included:
1 X Car Rearview Camera
1 X Video Cable
1 X Power Cable
1 X Hole Saw
1 X User Manual
1.8 infrared night vision LED
2.Waterproof, anti-shock
3.Simple installation
4.170 degree wide viewing angle
5.Die cast metal housing
6.Small and compact design
7.Completely waterproof housing
8.Universal wireless rearview backup camera
9.Mount the camera to your car's license plate area/back window, or any other suitable place
Specification:
| Color | Black |
| Camera Size | Approx. 21.5mm x 22mm/ 0.85" x 0.98" |
| Video Cable Length | Approx. 6m |
| Power Cable Length | Approx. 120cm/47.24" |
| Drill Hole Diameter | 18.5mm |
| TV System | NTSC/PAL |
| Image Sensor | Color CCD |
| Image Sensor | PC7070 |
| Image | Mirror |
| Image Sensors | Color CMOS |
| Effective Pixels | 640 x 480 pixels |
| Lens Angle | 170° |
| Resolution | 480 TV lines |
| Mini-IIlumination | 0.1LUX |
| Video Color | Colorful |
| Working Voltage Supply | DC 9V-16V(12V in car) |
| Power | 0.8W |
| Current Consumption | 60mA |
| White Balance | Auto |
| Waterproof | IP67 |
| Video output | RCA connector, 1.0Vp-p, 75ohm |
| Signal to Noise Ratio | >=48dB(AGCDEF) |
| Operating Temperature | -20°C~ 90°C, RH95% Max. |
| Storage temperature | -40°C~80°C, RH90% Max. |
Installation:
1.Use the hole driller to mount the camera at the back of the car (on the license plate back window or other suitable place)
2.Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
3.Connect the video cable of the camera to the extension cord.
4.Connect the extension cable to the car monitor.
5.You will see the images when your car is in reverse shift.
Package Included:
1 X Car Rearview Camera
1 X Video Cable
1 X Power Cable
1 X Hole Saw
1 X User Manual
