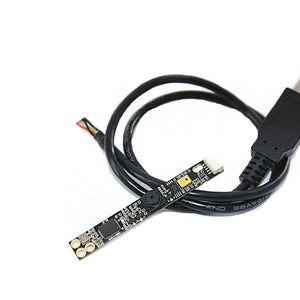

2MP Fixed Focus Free Driver Camera Module 5 pin USB2.0 Webcam with Standard UVC Protocol HM2057 1600*1200
Tax included.
Specifications:
| Model No. | HBV-1315 S1.0 |
| Model Size | 60mm ? 8mm ? 4.6mm |
| Temperature (Operation) | -20°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Image Area | 3888um*2208um |
| Object distance | 15CM-130CM |
| Resolution | 600LW/PH (Center) |
| Interface | USB 2.0 |
| Power | USB bus power |
| Power consumption | 110mW (VGA); 130 mW (UXGA); |
| Package | Anti-electrostatic tray |
| Operating system request | Windows 2000 Windows XPWindows 7 |
| Certifications | FCC and CE |
| Active Array Size | 1200*1600 |
| Sensitivity | TBD |
| Pixel Size | 1.75μm x 1.75μm |
| Maximum Image Transfer Rate | 15 fps for UXGA; |
| S/N Ratio | TBD |
| Dynamic Range | TBD |
| Package | CSP,Bare Die |
| Lens Type | |
| Lens Construction | 3P+IR |
| F/No | 2.8 |
| EFL | 3.28 mm |
| BFL(Optical) | 2.7mm |
| FOV | 60° |
| TV Distortion | <0.24% |
| Relative Illumination (Sensor) | 70% |
| R Filter | 650 ± 10nm |
| DSP Type | HBV1313 |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | USB suspend out |
| Fixed Pattern Noise | < 0.03% of V PEAK-TO-PEAK |
| Package | LQFN-40pin |
Package Included:
1 x 2MP Fixed Focus Free Driver Camera Module
1 x USB Cable
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
