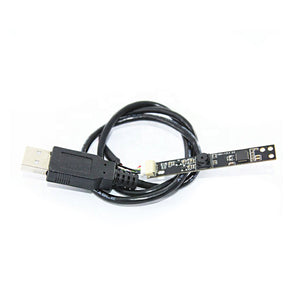

2MP USB Camera Module Fixed Focus OV2659 30fps USB Laptop Camera Module
Tax included.
Specification:
| Model No. | HBVCAM-1313 |
| Model Size | 60mm ? 8mm ? 4.5mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 400 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | OV2659 (1/5??) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1600*1200 |
| Sensitivity | 960mv /(lux-sec) |
| Pixel Size | 1.75μm x 1.75μm |
| Maximum Image Transfer Rate | YUY2 640x480 30FPS |
| S/N Ratio | 36db |
| Max Dynamic Range | 66db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2 |
| Microphone | NO |
| Lens Construction | 2P |
| F/No | 2.8 |
| EFL | 2.8 mm |
| FOV | 60 |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM |
Package Included:
1 x 2MP USB Camera Module OV2659
1 x USB Cable
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc
