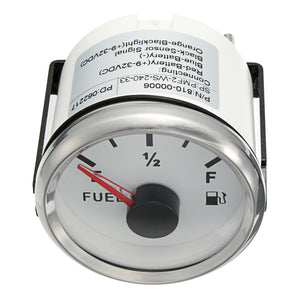

52mm Vehicle Marine Fuel Level Gauge Boat Oil Tank Level Indicator 240-33 ohms
Tax included.
Specification:
Material: Plastic, Rubber, Metal
Product size: Approx.60mm*57mm(H*Dia)
Panel opening diameter : 52mm (2-1/16")
Volt: 12V/24V
Resistance: 240-33
Output: 240-33 Ohms (American resistance value)
Operating temperature: -40??/span>~ +85 ??br />Protection level: IP67
Face color: White
Application:
Suitable for various oil level sensor, display the position of the oil tank level;12V/24V universal.
Main applications: craft, engineering machinery, vehicles, generators, engines, machinery etc.
Installation steps:
1. Cut a 52 mm (2 1/16") diameter pannel hole in panel (II).You will need a minimum clearance of 55mm (2 3/16")
behind the panel to fit the gauge.
2. Remove fastening ring (I).There is an alignment tab on the gauge body (III),
and mark the position of this tab to correctly align the gauge.
3. Insert gauge through panel from the front,
4. Connect wires according to wiring instruction.Note the use of dropping resistors for 24V circuit.Select either Orange
or Yellow wires for backlighting.Wire colour corresponds with backlight coulour.
5. Insert wire harness (IV) into port at the back of the gauge.
6. Please note, if the gauge is a voltmeter there is no black wire or resistors in the kit.
Connecting instructions:
Red-Battery( )
Blue-Battery( )
Black-Sensor
Orange-Red light
Yellow-Yellow light
Package Included:
1 X Fuel Level Gauge
1 X Instruction
Material: Plastic, Rubber, Metal
Product size: Approx.60mm*57mm(H*Dia)
Panel opening diameter : 52mm (2-1/16")
Volt: 12V/24V
Resistance: 240-33
Output: 240-33 Ohms (American resistance value)
Operating temperature: -40??/span>
Face color: White
Application:
Suitable for various oil level sensor, display the position of the oil tank level;12V/24V universal.
Main applications: craft, engineering machinery, vehicles, generators, engines, machinery etc.
Installation steps:
1. Cut a 52 mm (2 1/16") diameter pannel hole in panel (II).You will need a minimum clearance of 55mm (2 3/16")
behind the panel to fit the gauge.
2. Remove fastening ring (I).There is an alignment tab on the gauge body (III)
and mark the position of this tab to correctly align the gauge.
3. Insert gauge through panel from the front
4. Connect wires according to wiring instruction.Note the use of dropping resistors for 24V circuit.Select either Orange
or Yellow wires for backlighting.Wire colour corresponds with backlight coulour.
5. Insert wire harness (IV) into port at the back of the gauge.
6. Please note, if the gauge is a voltmeter there is no black wire or resistors in the kit.
Connecting instructions:
Red-Battery
Blue-Battery
Black-Sensor
Orange-Red light
Yellow-Yellow light
Package Included:
1 X Fuel Level Gauge
1 X Instruction
