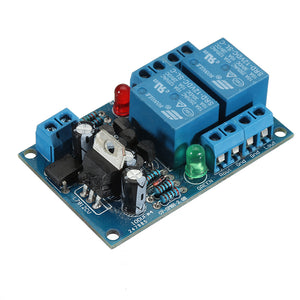

5pcs Speaker Power Amplifier Board Dual 15A Relay Protector Boot Delay and DC Detection Protection Module

Introduction:



The speaker protection board has a power-on delay (about 3 seconds) and DC protection (about 1V control voltage).

With LED status display, it will light when it is protected, and will be extinguished when it is working normally.

Adopt 15A high current relay, suitable for most power amplifier boards.

The working voltage is 12-15V, which requires independent power supply.
Dimensions: length 65mm width 40mm height 25mm

Note:



1. Speaker protection requires independent power supply and cannot share one winding with other circuits.

2. The BTL circuit requires two sets of protection boards (one set of one channel)

3. The protection board is only suitable for dual power supply amplifiers, and cannot be used for single power supply amplifiers.

Package includes:

5 x Speaker Protection Board
