6 LED Car Trailer Boat Emergency Light Bar Hazard Flashing Strobe Warning Lamp
Tax included.

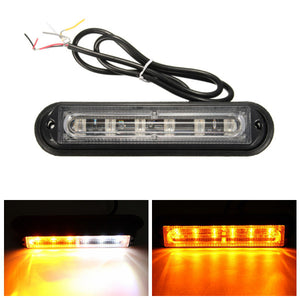

6 LED Car Trailer Boat Emergency Light Bar Hazard Flashing Strobe Warning Lamp
Feature:
1 .Self-contained light head, no need to connect external flasher.
2. Super bright flashing light.
3. 18 kinds of strobe flash modes.
4. Durable,waterproof,shockproof.
5. Good heat dissipation, built-in heat sink.
Specification:
Light color: yellow+white,white,yellow
Lighting Type:strobe
Number of LED in panel: 6
Voltage: 12V-24V
Power: 6W
Working Temperature:-40??nbsp;to 40??br />Color Temperature:6000-7000K
Cable Length: about 73cm / 28.7 inch
Waterproof level: IP62
Wires Introduction:
1. Red Wire: To +VDC (fuse@3A)
2. Black Wire: To Chassis Ground
3. Yellow Wire: Synchronization / PatternSelector
(Connect yellow wire of all heads together for synchronization momentarily apply yellow wire to red for one second to change pattern.)
4. White and Gray: Alternating Pattern
(to male light heads alternate connect the gray wire of the even number of heads to the white wire of the odd number of heads.)
Flash Pattern:
Package Included
1 X 6 LED Car Emergency Light
2 X Screws
1 X Manual
Feature:
1 .Self-contained light head, no need to connect external flasher.
2. Super bright flashing light.
3. 18 kinds of strobe flash modes.
4. Durable,waterproof,shockproof.
5. Good heat dissipation, built-in heat sink.
Specification:
Light color: yellow+white,white,yellow
Lighting Type:strobe
Number of LED in panel: 6
Voltage: 12V-24V
Power: 6W
Working Temperature:-40??nbsp;to 40??br />Color Temperature:6000-7000K
Cable Length: about 73cm / 28.7 inch
Waterproof level: IP62
Wires Introduction:
1. Red Wire: To +VDC (fuse@3A)
2. Black Wire: To Chassis Ground
3. Yellow Wire: Synchronization / PatternSelector
(Connect yellow wire of all heads together for synchronization momentarily apply yellow wire to red for one second to change pattern.)
4. White and Gray: Alternating Pattern
(to male light heads alternate connect the gray wire of the even number of heads to the white wire of the odd number of heads.)
Flash Pattern:
| 1. Random | 11. Double-All |
| 2. Single-Split | 12. Quad-All |
| 4. Double-Split | 13. Accelerator-All |
| 5. Quad-Split | 14. Quad/Single-All |
| 6. Accelerator-Split | 15. Plus/Single-All |
| 7. Quad Burst-Split | 16. Half Steady-1 |
| 8. Double/Accelerator-Split | 17. Half Steady-2 |
| 9. Quad/Accelerator-Split | 18. OFF |
| 10. Single-All |
Package Included
1 X 6 LED Car Emergency Light
2 X Screws
1 X Manual
