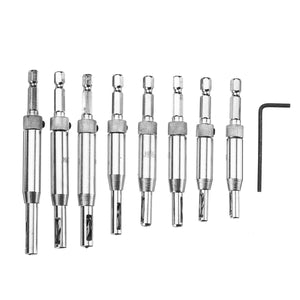

8pcs Self Centering Hinge Hardware Drill Bit Set Pilot Hole Guides Door Window Hinges Set
Tax included.
Description:
8pcs Self Centering Hinge Hardware Drill Bit with 1pc Wrench Set Pilot Hole Guides Door Window Hinge Set
Specifications:
Device Type: Hinge Hardware Drill Bits Set
Material: High-Speed Steel
QTY: 9PCS (8PCS Drill Bits+1PC Wrench)
Color: Silver
All Shank Size: 1/4inch(6.35mm)
Dimensions: 5/64inch, 7/64inch, 9/64inch, 9/64inch, 11/64inch, 13/64inch, 5mm, 1/4inch
Drill Length:
??5/64": 87mm
??7/64": 90mm
??9/64": 94mm
??11/64": 100mm
??13/64": 109mm
??5mm: 108mm
??1/4": 113mm
Use:
5/64inch: Hole diameter is about 2mm, for about 2.2-2.8mm tapping screw.
7/64inch: Hole diameter is about 2.8mm, for about 3-3.5mm tapping screw.
9/64inch: Hole diameter is about 3.5mm, for about 4-4.5mm tapping screw.
11/64inch: Hole diameter is about 4.5mm, for about 5-5.5mm tapping screw.
5mm: Hole diameter is about 5mm, for about 5.5-6mm tapping screw.
13/64inch: Hole diameter is about 5.2mm, for about 6-6.5mm tapping screw.
1/4inch: Hole diameter is about 6.35mm, for about 7-7.5mm tapping screw.
Note:
Please adjust according to the hardness of the wood, if the wood is soft, choose a smaller size;
If the wood is hard, you can choose a larger size or corresponding opening tool.
Please adjust according to the hardness of the wood, if the wood is soft, choose a smaller size;
If the wood is hard, you can choose a larger size or corresponding opening tool.
Package Included:
8 x Hinge Hardware Drill Bits
1 x Wrench
