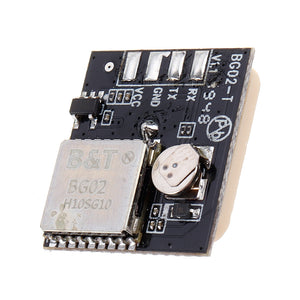

AI-Thinker BG02-T GPS Positioning Navigation Module GPS + BDS Dual-mode Integrated Antenna Integration
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
>>>Manual: Click here to open??/a><<<
??br>Feature:
??br>Comes with a high-performance ceramic antenna. It is widely used in smart devices such as car navigation, smart wear, drones, and can be upgraded with multi-mode positioning functions.
?ŠSupport BDS / GPS / GLONASS / GALILEO / QZSS / SBAS multi-system joint positioning and single system independent positioning
Support D-GNSS differential positioning, A-GNSS auxiliary positioning, ephemeris prediction, DR integrated navigation application, the fastest data update rate 10Hz
32-bit application processor with a maximum frequency of 133MHz, supporting dynamic frequency adjustment
Support PPS output
Peripheral interface: UART
?ŠSize: 21 * 18mm
Antenna: Ceramic antenna
Certification: RoHS
??br>
|
Category |
Test Item |
Typical |
Unit |
|
TTFF |
Cold Start |
27.5 |
s |
|
Warm Start |
<1 |
s |
|
|
Re-Acquisition |
<1 |
s |
|
|
A-GNSS |
<10 |
s |
|
|
Sensitivity |
Cold Start |
-148 |
dBm |
|
Warm Start |
-162 |
dBm |
|
|
Re-Acquisition |
-164 |
dBm |
|
|
Tracking |
-166 |
dBm |
|
|
Accuracy |
Horizontal position accuracy |
2.5 |
m |
|
Altitude position accuracy |
3.5 |
m |
|
|
Velocity accuracy |
0.1 |
m/s |
|
|
Accuracy of time pulse signal |
30 |
ns |
|
|
Power |
Acquisition Current@3.3v |
30 |
mA |
|
Tracking Current@3.3V |
20 |
mA |
|
|
Operating Temperature |
|
-40°C~85°C |
°C |
|
Storage Temperature |
