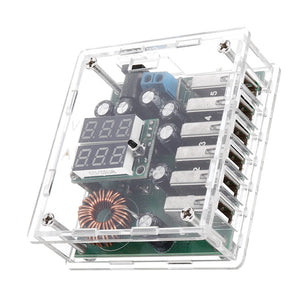

DC10-30V to DC5V 12A Car Power Charging Module with Shell Power Supply Board

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Feature:

Input: 10V-30V

Output: 5.3V8A

Input port: 5.5 2.1 female interface compatible with 5.5 2.5 (direct wire access)

Output 6 USB interface features: custom iron silicon aluminum inductance, increase input and output with TVS protection support 12V car 24V large truck use, synchronous rectification large current output low heat and high efficiency. Start protection with voltage over 5.6V, prevent accidental pass-through, more securely protect your mobile phone or tablet PC / or other 5V charging products

Display: The upper red digital tube shows the output voltage of the USB port, and the lower blue digital tube shows the output current of the USB port.

Scope of use: Support 12V car 24V large truck, support identification apple pad 2.4A identification Samsng mobile phone tablet charging mobile power charging, can be changed to a driving recorder power supply interface car charger desktop charger.

Current calibration: Power on without load, press and hold the button 6S, the upper and lower digital tubes flash, the upper digital tube displays 001, the lower digital tube displays 000, that is, the calibration is successful, press and hold the button 6S to exit.

Package includes:

1 x 10-30V to Dc5V 12A car power charging module with shell
