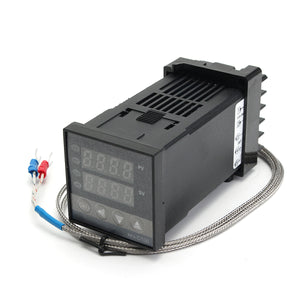

Digital REX-C100 Temperature Controller with K Type Thermocouple
Tax included.
Features :
Main functions: temperature measurement, temperature control, temperature switch, temperature alarm.
Often apply to: electrical, chemical, injection molding, packaging, food, incubators, ovens and other equipment important components.
Temperature controller using intelligent PID control, the temperature controller according to the thermocouple (thermal resistance) measurement signal and the user set the value of the deviation PID operation, which issued a command to relay action to achieve automatic control, automatic temperature effect; The instrument also has an upper limit temperature alarm and relay output function, can be widely used in electric power, chemical, injection molding, packaging, food, incubator, oven, related thermostat products.
Specification :
Input type: 0-400 ?? K type
Master output: relay (RELAY), solid state relay (SSR)
Alarm output: all the way to the upper limit deviation alarm (adjustable lower limit, upper and lower limit deviation alarm)
Alarm range: full range free set
Working voltage: AC220V
Power consumption: 4W
Dimensions: 48mm * 48mm * 110mm Hole size: 45mm * 45mm
Thermal resistance: CU50, Pt100
Linear signal: 0-10mA 4-20mA
Accuracy: 1% ± 1 word, 0.51% ± 1 word, 0.2% ± 1 word third gear
Control mode: PID control, bit control
Logic voltage: DC 0 / 5V
Zero-crossing trigger pulse: Optocoupler output 1A 600V 0-10mA, 0-20mA, 4-20mA current output (load resistance below 600Ω)
Measurement of digital range: -1999 ~ 9999, -199 ~ 9999 two kinds
Relay output contact capacity: 3A / 220V, resistive or specified
SCR trigger signal: 15 / 40μS or rated 100mA, instantaneous IA (self-triggered)
Solid state relay output signal: 15 ± 3V / 30mA
Working environment: 0-50 ?? relative humidity 35% ~ 85% RH, no corrosion and no strong electromagnetic field radiation occasions.
Package includeds :
1 x Temperature controller
1 x K type thermocouple (BEM Screws, M6)
Details pictures :
