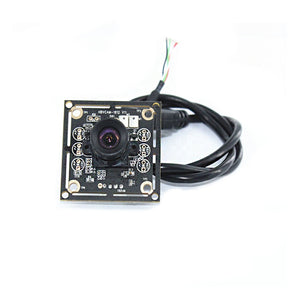

HBV-1812 2MP HD Wide Dynamic Range AR0230 CMOS Camera Module with Beauty Function
Tax included.
Specifications:
| Model No. | HBV-1812 |
| Model Size | 38mm ? 38mm ? 18.24mm±0.5MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 1100 mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
| Sensor | AR0230 (1/2.7??) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1920*1080 |
| Sensitivity | 4.0 /(lux-sec) |
| Pixel Size | 3.0μm x 3.0μm |
| Maximum Image Transfer Rate | MJPEG 640x480 30FPS / YUY2 640x480 30FPS |
| S/N Ratio | 41d |
| Max Dynamic Range | 105db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 2G2P |
| F/No | 2.4 |
| EFL | 3.0 mm |
| FOV | 100° |
| TV Distortion | <5% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
| USB cable | 50CM |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don?™t make an order for it. Thank you for your understanding | |
Package Inlcuded:
1 x HBV-1812 2MP HD Wide Dynamic Range AR0230 CMOS Camera Module
1 x USB Cable
Note:
A. Purchase quantity ??0, support lens replacement
B. Purchase quantity ??00, support customization
1. First explain the specific parameter requirements of the product you need, the more detailed the better.
2. Provide product size structure diagram, PIN angle definition, etc.
