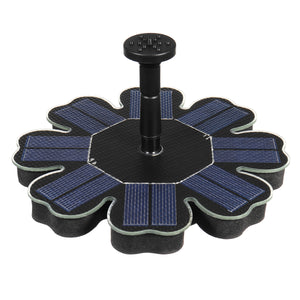

IP68 180L/H 1.4W Solar Powered Fountain Pump Kit Floating Pools Garden Ponds Brushless Water
Tax included.
Specifications:
Style 1: FR4 1.6mm Half Glass Fiber Board, Epoxy Resin Encapsulation Process
Style 2: FR-4 1.6mm Pure Glass Fiber Board, ETFE Film Encapsulation Process
Color: Black
Solar Panel: Polycrystalline Silicon 8V/1.6W Solar Panel
Brushless Pump: 8V/1.4W
Max. Flow of Pump: 180L/H
Max. Water Height: 40-70cm
Max. Lift of Pump: 150cm / 59in
Waterproof Grade: IP68
Solar Panel Dia.: 160mm / 6.3in
Pump Size: 38 * 30 * 25mm / 1.5 * 1.2 * 0.98in
Weight: 182g / 6.44oz
Package Size: 17 * 16.5 * 4.5cm / 6.7 * 6.5 * 1.77in
Package Weight: 262g / 9.27oz
5-Petals‘ Specifications:
Color: Black
Solar Panel Material : Monocrystalline PET Laminated, FR-4 Glass Fiber Board
Solar Panel Voltage/Power : 7.5V/1.5W
Brushless Pump: Power Range : 0.6~1.1W
Input Voltage Range : DC 4.5-9V
Starting Voltage : DC 4V
No-load Voltage : DC 3V
Load Current : 165±15m
Max. Flow : 160±L/H
Max Water Height: 30~50cm
Max Lift : 100cm
Waterproof Grade: IP68
Solar Panel Dia: 153mm/6.1in
Package Size: 17cm* 16.5 * 3.6cm / 6.7 * 6.5 * 1.4in
Package Weight: 220g
Pentagram & 12-Petals’ Specifications:
Color: Black
Solar Panel Material : Monocrystalline PET Laminated, FR-4 Glass Fiber Board
Solar Panel Voltage/Power : 5V/1.4W
Brushless Pump: Power Range : 0.6~1.1W
Input Voltage Range : DC 4.5-9V
Starting Voltage : DC 4V
No-load Voltage : DC 3V
Load Current : 165±15m
Max. Flow : 160±L/H
Max Water Height: 30~50cm
Max Lift : 100cm
Waterproof Grade: IP68
Solar Panel Dia: 172mm / 6.77in
Package Size: 17cm* 16.5 * 3.6cm / 6.7 * 6.5 * 1.4in
Package Weight: 240g
-FR4 1.6mm Glass fiber board, no deformation and strong weather ability
-Highly efficient, works well even with weak sunlight
-light transmittance >95%, stable performance.
-Tightly cover the board to prevent water from entering
-Pure copper wire, ensuring long service life of water pump
-Intelligent IC control,more efficient for output
-4700uF large value capacitor,easier to work under weak sunlight condition
-Solar powered fountain pump kit, no other power or battery needed.
-Brushless water pump, long service life and lower consumption.
-The item can float in the water, high flexibility and no need to install the pump.
-4pcs different fountain nozzles included; max. water height: 50-80cm.
-Suitable for bird bath, small pond, garden decoration, water circulation for oxygen, etc.
-This solor-powered fountain floats on the water and pumps water in a few of seconds in the sun(enough sunshine). It can be widely used in garden, bird bath, --small pond, water circulation for oxygen, etc.
Caution:
* Be sure to put enough water in the fountain, especially on sunny days; always keep the pump entirely under the water.
* Change water frequently to keep water cleaning to avoid any dirt to block the pump.
* Be careful to protect the solar panel to avoid damage, keep surface cleaning constantly.
Product Performance:
1. The pump is driven directly by the sunlight. So it will work continuously only when the sunlight is enough. As the power of the solar panel is depended on the sunlight, the pump is also affected by weather, seasons, places, etc.
2. Don’t make the pump work without water for a long time, or its lifespan will be shortened.
3. Don’t put the solar panel and the control box in water, or it will be damaged.
4. Clean the pump regularly. If it’s duty, it will stop working.
5. The solar panel is made up of glass and metal. You must be careful when using it. And don’t let children play with it.
6. The moment that the pump starts to work, its spray height will be higher than the normal range and it will return to normal after 3-5 seconds.
Method of Operation:
1. Peel off the plastic film protector on the surface before use;
2. Assemble the product according to the instruction.
3. Please kindly keep the solar power fountain pump to get the full sunshine to work (no shadow or cloud on solar panel);
4. Without switch, the pump will work normally as soon as the sunshine is enough
5. There is some air in the pump at the moment when it is put in the water. You'd better not concentrate the spray head to the pump until it sprays normally.
6. Don't make the fountain pump operate without water for long hours because it will shorten the lifespan of the pump or burn out the motor,
7. Keep the water and the pump clean regularly to avoid any dirt to block the pump.
Package included:
1 * Solar Panel with Pump (5Styles Optional)
4 * Fountain Nozzle
1 * Nozzle Base
1 * Connection Head
1 * Outlet
1 * User Manual (English)
