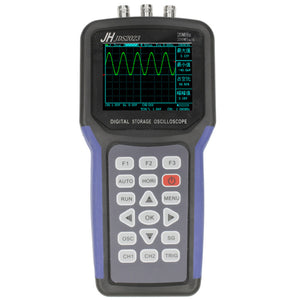

JDS2023 Digital Storage Handheld Oscilloscope 1 Channels 20MHz Oscilloscope AC/DC Input Coupling
Tax included.
Description:
It is an electronic tool used to graphically depict sound waves and environmental frequencies. This tool is helpful in a number of different applications. Some of the most common include music, particularly radio frequencies and digital music remastering, but it can also be helpful in certain circuitry and engineering scenarios and in doing things like measuring seismic activity and certain other sounds in nature.
It is an electronic tool used to graphically depict sound waves and environmental frequencies. This tool is helpful in a number of different applications. Some of the most common include music, particularly radio frequencies and digital music remastering, but it can also be helpful in certain circuitry and engineering scenarios and in doing things like measuring seismic activity and certain other sounds in nature.
Features:
??With signal generator function
??200MSa/s sample rate and 20MHz bandwidth
??3.2 inch color TFT LCD, 320 x 240 pixels
??You could switch menu language between English and Chinese
??Powered by 1 x 3000mAh 18650 Li-ion battery (not included)
Oscilloscope Function:
Input
Input coupling: AC,DC
Channel: 1
Display mode: Y-T
The input impedance: 1MΩ 25pF
The maximum input voltage: 40V(Probe X1);400V(Probe X1);2000V(Probe X100)
Probe attenuation: 1X,10X
Attenuation setting: 1X,10X,100X
Signal acquisition system
Sampling method: Real time sampling, random sampling
The storage depth: 2K
Acquisition mode: Sampling, peak detect
Vertical system
Vertical sensitivity: 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping)
The vertical accuracy: +/-3%
The vertical resolution: 8bit
Bandwidth: 20MHz
Horizontal system
The real-time sampling rate: 200 MSa/s
Horizontal scanning range: 10nS/div-5S/div
Triggering system
Trigger Mode: Automatic, normal and single
Trigger Type: The rising edge, falling edge
Automatic detection: Support(50Hz-40MHz)
Measurement system
Cursor measurement: Support time and voltage
Measuring method: Manual
Measurement: The peak to peak value and frequency
Equipment
Screen: 3.2 inch,16 bit true color,TFT,320*240
Battery: 2000+mA Lithium battery (support 5 hours of continuous work)
Size: 202 x 100 x 35mm
Package weight: 1.130 kg
Package weight: 1.130 kg
Digital channel: 200 MSa/s
Signal Generator:
Frequency range: sine 1Hz - 5MHz, other waveforms 1Hz - 1MHz
Duty ratio: 0 - 100 percent
Amplitude: 100mV - 4V
Offset: +(0V -2V)
Package included:
1 x JDS2023 Digital Storage Handheld Oscilloscope
1 x Charger
1 x USB Cable
1 x Probe
1 x CD
Detail Pictures:
Offset: +(0V -2V)
Package included:
1 x JDS2023 Digital Storage Handheld Oscilloscope
1 x Charger
1 x USB Cable
1 x Probe
1 x CD
Detail Pictures:
