LiteArk TK16 11-IN-1 Fiber Optic FTTH Tools Kit Power Meter FC-6S Fiber Cleaver
Tax included.
Features :
This is a multi-purpose toolkit,it can provides the tools necessary for the assembly of mechanical splices and it will bring you a higher working efficiency.
1mW Visual Fault Locator Fiber Optic Cable Tester Meter for CATV.Its Power Supply: 2 x AA 1.5 V batteries(Not included).
The FC-6S fiber optic cleaver is used for single fiber cleaving. This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
New Fiber Optic Cable Handle Optical Power Meter -70~+8 dBm FC SC Tester.
Fixed length guide rail groove 2 1: Can be used for indoor cable stripping coating layer and positioning length It can be used to locate the indoor cable into the optical fiber cutting knife.
With 2 piecies of replaceable test pen core and 2 piecies of hwxagonal socket wrench.
Specification :
Optical power:Wavelength(nm): 850~1625mm
Detector: InGaAs
Measurement Range (dBm): -70dBm~+10dBm
Uncertainty: ±0.2(5%)
Calibrated Wavelength(nm): 850,980,1300,1310,1490,1550
Resolution(dB): Linear indication: 0.1% Loharithmic indication: 0.01dBm
Optical Connector: FC/ Universal 2.5mm adaptor
Power Supply: Alkaline Battery(2 AA 1.5V batteries) (Not included)
Battery Operating Time: 240 h with 1.5V Battery(3)
Operating Temperature: -10 ~ +60C
Storage Temperature: -25 ~ +70C
Relative Humidity: 0 to 95% (non-condensing)
Dimension(mm): 180x85x25mm
CLAUSS Fiber Optic Stripper CFS-2: 30mm(W) x 110mm(D) x 20mm(H)
1Mw Visual Fault Locator(With bag): 175 x 26 x26mm

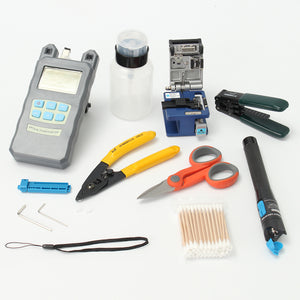

Package Includes :
1 x PWA001 power meter
1 x FC/ Universal 2.5mm adaptor
1 x Fiber cleaver FC-6S China OEM Cleaver
1 x 1Mw Visual Fault Locator(With bag)
1 x CLAUSS Fiber Optic Stripper CFS-2
1 x 210*140*110mm Carry bag
1 x Cotton swabs bag
1 x Fixed-length Fiber optic wire stripping
1 x 200ML Hard Alcohol Bottle Container
1 x KS01 Fiber Optic Shears/Scissor
1 x Fiber Optic Stripping Tool Plier
Details Pictures :
