M5Stack UnitV AI Camera Module by Kendryte K210 Dual-Core 64bit RISC-V CPU Convolutional Neural Network Processor

Description:



UNIT-V is the new AI Camera powered by Kendryte K210 .An edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and Convolutional Neural Network neural network processor.UNIT-V AI Camera features its integration with machine vision capabilities, featuring the unprocessed acceptability to AI Visioning with high energy efficiency and low cost. We co-oped with Sipeed providing the MicroPython environment makes programming on UNIT-V easier. Support MicroPython development environment, which makes the program code more concise when you use UNIT-V for project development.Equipped with OV2640 (2 megapixel) image sensor, it is an ideal choice for machine vision project.It is equipped with two programmable keys and an RGB LED indicator on the front for convenient status display.At the bottom, there is a PH2.0*4P interface and a type-C interface compatible with grove, which is convenient to connect with the main controllor. Support TF card to expand memory, related material and model file call more convenient.



Features:



#Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)

#Dual Independent Double Precision FPU

#8MiB 64bit width On-Chip SRAM

#Neural Network Processor(KPU) / 0.8Tops

#Field-Programmable IO Array (FPIOA)

#AES, SHA256 Accelerator

#Direct Memory Access Controller (DMAC)

#Micropython Support

#Firmware encryption support

#Case Material: PC + ABS

#On-board Hardware resources:

#Flash: 16M

#Camera :OV2640

#Button: button * 2

#Indicator light: RGB LED

#External storage: TF card/Micro SD

#Interface: PH2.0/compatible GROVE



Applications/What can UNIT-V do?



#Face recognition/detection

#Object detection/classification

#Obtaining size and coordinates of the target in real-time

#Obtaining the type of detected target in real-time

#Shape recognition

#Video recoder



Size and Weight:



#Size: 4mm * 2.5mm * 1.5mm

#Weight: 4g



Package Included:

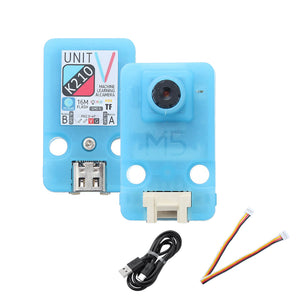

1x UNIT-V(include 20cm 4P cable and USB-C cable)
