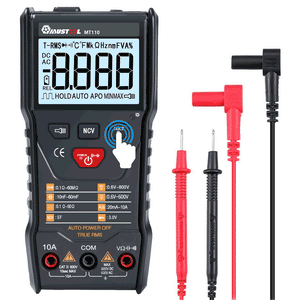

MUSTOOL MT110 Auto Measure Multimeter True RMS Digital 6000 Counts Display Multimeter
Tax included.
Descriptions:
Auto Recognition According to Measurment Requirements
High Voltage DC1000V Protection
Auto Measure Digital Multimeter
NCV/Super Bright Flshlight Function
Basic specification:
Package Includes:
1 x MT110 Multimeter
1 x English User Manual
1 x Test leads
Detyails Pictures:
Auto Recognition According to Measurment Requirements
High Voltage DC1000V Protection
Auto Measure Digital Multimeter
NCV/Super Bright Flshlight Function
Technical specification | ||
Basic function Measuring range Accuracy | ||
DC Voltage |
6V/60V/600V/800V | (0.5%+4) |
AC Voltage |
6V/60V/600V | (0.8%+3) |
DC Current |
6A/10A | (0.8%+8) |
AC Current |
6A/10A | (1.0%+8) |
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | (0.8%+5) |
Capacitance |
60nF/600nF/6μF/60μF/600μF/6mF/60mF | (2.5%+60) |
30mF | (5.0%+10) | |
30mF(< |
(10%+5) | |
Special function | ||
True RMS | √ | |
NCV | AC non_contact electric field measurement | √ |
Flashlight function | √ |
|
Buzzer | (0.1Ω-50Ω) | √ |
Automatic |
Auto recognition According to Measurment requirements | √ |
Continuity Buzzer | 40Hz-1kHz(N only sine wave& triangular wave, other >200Hzwaveforms are for reference only | √ |
Continuity Test | About0.6V | √ |
Data Hold | HOLD | √ |
LCD Backlight | √ | |
Low battery tips | √ | |
Auto shutdown | About 15 minutes | √ |
Display | 6000 Counts | √ |
Basic specification:
Environment | 18??e style='color:red;'> |
Battery | AAA1.5V*2(not included) |
LCD Size | 50x33(mm) |
Body Color | Black |
Body weight | 250g |
Dimensions | 146x69x34(mm) |
Standard Accessories | Manual, certificate,box |
Package | Color box |
Package size | 165x103x34(mm) |
Package Includes:
1 x MT110 Multimeter
1 x English User Manual
1 x Test leads
