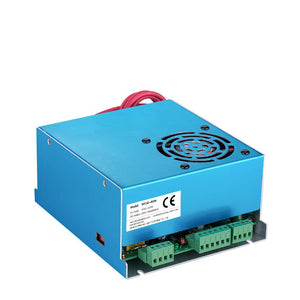

MYJG-40WT 40W CO2 Laser Power Supply Module 110V/220V for Laser Tube Engraving Cutting Machine Model A

MYJG-40WT 40W CO2 Laser Power Supply Module 110V/220V for Laser Tube Engraving Cutting Machine Model A

  • R 2,902.71
    Unit price per
  • Save R 2,902.71
Tax included.

SKU:

Features:

- Easy control: manually test buton TTL level control
- High performance long life: quick response output open circuit protection
- Good compatibitily: applicable to various 35-50W laser tube
- 110/220V adjustable by Switch

Specifications:


Input voltage   AC110/200V(adjuat by switch)
AC frequency  47-440Hz
Max input power   250W
Max input current  3A
Max output voltage  DC23KV
Max output current DC20mA
Efficiency >90%
WTBF >10000H
Response speed <1ms(time from the TTL signal is given to the output current up to 90% presetting current)
Withstand voltage input-output,input-enclosure:AC1500V 10mA 60S,output cathode is connected with enclosure.
Cooling force-air colling(FAC)

Package Included:

1 x MYJG-40WT 40W CO2 Laser Power Supply Module
