NFC ACR122U RFID Contactless Smart Reader & Writer/USB + SDK + Mifare IC Card
Tax included.
Features:
-It's the smallest in the world, lightweight and compact. Put your micro SD into the card slot, inset the micro USB into the pc and then start working.
-Read/write speed up to 242 kbps.
-Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type).
-Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags.
-Supports new Mifare Ultralight C (via pseudo APDUs) and Mifare Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3.
-Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes.
-Apply to network access control, micro-payment, public transportation terminals, automatic fare collection, physical access control, customer loyalty, time and attendance, contactless public phones, vending machines.
Specification:
Color:White
Size:98 x 65 x 11mm/3.86" x 2.56" x 0.43"
Weight: 142g
Interface: USB Full Speed
Operating Distance: <= 50mm (depends on tag type)
Supply Voltage: Regulated 5V DC
Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature: 0-50°C
Operating Frequency: 13.56 MHz
Smart Card Interface Support: ISO14443 Type A & B, Mifare, FeliCa, 4 types of NFC (ISO/IEC18092) tags
Compliance/Certifications: PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed
M-icrosoft ® WHQL: 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7
Operating System Support: Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008
Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64
Windows CE 5.0
Linux
M-ac (Please find the proper software to support it)

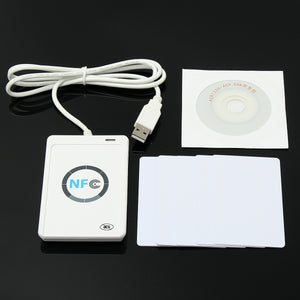

Package Included:
1 x ACR122U Reader
1 x CD
5 x ID Card
Detail Pictures:
Detail Pictures:
,
,
,
,
,
,
,
,
,
