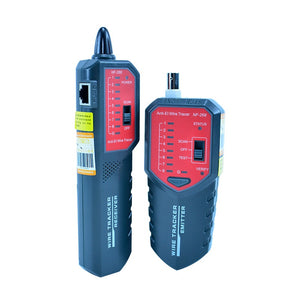

NOYAFA NF-268 Wire Tracker Network Telephone Cable Test Toner Tracer Tester with Anti-jamming Line Finder

NOYAFA NF-268 Wire Tracker Network Telephone Cable Test Toner Tracer Tester with Anti-jamming Line Finder

  • R 2,557.05
    Unit price per
  • Save R 2,557.05
Tax included.

SKU:

Features:


1. Quickly trace & find  Lan/telephone/coax cable.

2. Two scan modes: ordinary switches or PoE swtiches.

3. Check cable continuity for Lan cable.

4. Track with AC Filter when a bundle of cable gathers together.

5. Tone tracing breakge points of Lan cables and metal lines.

6. RJ45/RJ11/BNC and other ports are included and no need of akaward adaptors.


Specifications:


NF-268 Transmitter specifications
Tone frequency 200Hz
Max. distance of transmission More than 3 kilometers
Max. working current Less than 10mA
Tone mode 2 Tones, adjustable
Compatible connectors RJ11, RJ45,BNC
Max. signal voltage 8Vp-p
Function and faults light display Light display(Wiremap, tone,tracing)
Voltage protection DC 48V
Battery Type DC9.0V(NEDA 1604/6F22 DC9V x 1pcsï¼?/td>
Dimension(LxWxD) 13x4x2cm
NF-268 Receiver specifications
Frequency 200kHz
The Max. working current Less than 30mA
Earjack 1
Battery Type DC9.0V(NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD) 10 x 5 x 2.3cm


Package includes:


Transmitter * 1 (Battery not included)

Receiver * 1 (Battery not included)

Cable clips * 1
Telephone cable adaptor * 1
Network cable adaptor * 1
Earphone * 1
User manual * 1
Carry case * 1
Gift box * 1



Attention

1. Don't connect high voltage lines to avoid burning out the device.

2. Don't connect live telephone cable into RJ45 port.


Details picture:
