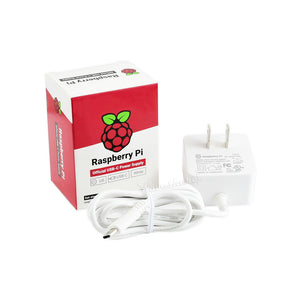

Official USB-C Power Supply US Plugfor Raspberry Pi 4

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Overview:
??br>Official USB-C power supply for Raspberry Pi 4
Model: US, White

Specifications

Input Voltage: AC 100-240V (50/60Hz)
Input Current: 0.5A (Max)
Inrush current: No damage shall occur and the input fuse
shall not blow
Power consumption (no load): 0.075W maximum
Output Voltage: DC 5.1V
Output Current: 3.0A
Cable Length: 1.5m
Output Connector: USB Type-C
Environment: Operating ambient temperature 0??0°C

Output
Output voltage: +5.1V DC
Minimum load current: 0A
Nominal load current: 3.0A
Maximum power: 15.3W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for
DC outputs
Turn-on delay: 3000ms maximum at nominal input AC
voltage and full load
Protection: Short circuit protection
Overcurrent protection
Over temperature protection
Efficiency: 81% minimum (output current from 100%,
75%, 50%, 25%)
72% minimum at 10% load
Output cable: 1.5m 18AWG
Output connector: USB Type-C

Note: the power supply's color might be white or black, delivered randomly.

?Špackage Included:
??br>PI-PSU-5V3A-USB-C-US x1
