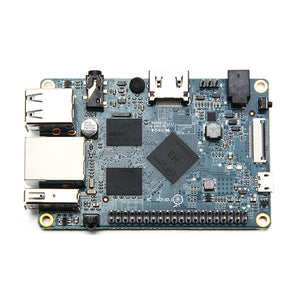

Orange Pi PC H3 Quad-core Learning Development Board
Tax included.
Description:
- What’s Orange Pi PC?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
- What can I do with Orange Pi PC?
You can use it to build…
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi is open source
Notes:
1. Number will change at any time, affected by the offline stores and local procurement
2. It is best to buy a good quality DC charger . Because Orange Pi doesn't support Micro USB Power supply.
Orange Pi requires a memory card beyond 8g, class10
Click for more info
Package included:
1 x Orange Pi PC H3 Quad-core Learning Development Board
- What’s Orange Pi PC?
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM
- What can I do with Orange Pi PC?
You can use it to build…
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
Pretty much anything else, because Orange Pi is open source
- Who’s it for?
Orange Pi PC is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
| Hardware specification | |
| CPU | H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU |
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
|
| Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot |
| Onboard Network | 10/100 Ethernet RJ45 |
| Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps |
| Audio Input | MIC |
| Video Outputs |
Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function Integrated CVBS Supports simultaneous output of HDMI and CVBS |
| Audio Output | 3.5 mm Jack and HDMI |
| Power Source | DC input, USB OTG input don't supply power |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+ |
| GPIO(1x3) pin | UART,ground. |
| LED | Power led & Status led |
| Key | IR input,POWER |
| Supported OS | Android Lubuntu, Debian, Rasberry Pi Image |
| Interface definition | |
| Product size | 85mm × 55mm |
| Weight | 38g |
| Power supply | 5V 3A |
| Operating Temperature | -10 ~ 65??/span> |
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited | |
Notes:
1. Number will change at any time, affected by the offline stores and local procurement
2. It is best to buy a good quality DC charger . Because Orange Pi doesn't support Micro USB Power supply.
Orange Pi requires a memory card beyond 8g, class10
Click for more info
Package included:
1 x Orange Pi PC H3 Quad-core Learning Development Board
