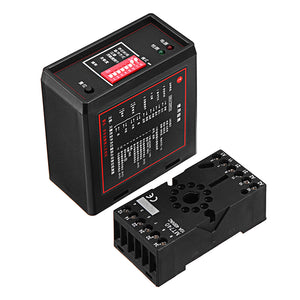

PD132 Single Channel Inductive Vehicle Loop Detector for FAAC BFT CAME Gate Barrier Operator

Features :

Reset Switch: The reset switch enables the detector to be manually reset during registering and testing and it is a process of system recovery;

Selectable Pulse Time: This feature sets the length of time that the pulse relay will be lasting for 1 Second or 0.5 Seconds;

Pulse Relay Selection: The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop;

Sensitivity Reinforcement: This feature sets the un-detecting level to a maximum sensitivity to prevent failing to detect vehicles as big trucks;

Switch Sensibility Adjustable: 4 sensitivity setting are available on the switches to change sensitivity;


Switch Frequency Adjustable: 4 frequency settings are available to prevent signal interference with neighboring loops;

Filtering Option: This option is used to provide a delay between detection of the vehicle and switching of the output relay. This relay is normally used to prevent false detection of small or fast moving objects;

Permanent Presence Option: This feature ensures the detection of the vehicle will be maintained when the vehicle stays within the loop area for extended periods.



Specification :

Supply voltage: 110V AC / 220V AC / 12V DC / 24V DC

Voltage tolerance AC:  +10% / -15%

Voltage tolerance DC: ±15%

Power Consumption: 4.5VA

Operating temperature: -20??to +65??

Storage temperature: -40??to +85??/span>

Frequency range: 20 kHz to 170 kHz
Reaction time: 10ms

Signal lasting time: Unlimited / limited when loop is permanently covered 10 minutes

Sensitivity: Adjustable

Loop inductance: Total loop plus connection wiring: 50μH to 1000μH; Ideal is 100μH to 300μH

Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter

Dimension: 78x40x108 mm (L x W x H)


Package includeds :

1 x Vehicle Loop Detector (110V AC / 220V AC / 12V DC / 24V DC for Optional~)
1 x User Manual >>>Download Wiring Diagram<<<


Details pictures :
