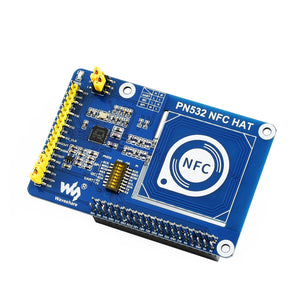

PN532 NFC HAT for Raspberry Pi I2C / SPI / UART Interfaces
Size Conversion
Inches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Overview:
This is a Raspberry Pi NFC HAT based on PN532 operating in the 13.56MHz frequency range. It supports three communication interfaces: I2C, SPI, and UART.
NFC (Near Field Communication) is a wireless technology allows contactless point-to-point data communication between devices within a short distance of 10 cm. It is widely used in applications such as access control system, smart tickets, meal card, etc.
Based on the popular NFC controller PN532 with multi interface options, this HAT will easily enable NFC function for your Raspberry Pi.
Features:
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Onboard PN532 chip, supports various NFC/RFID cards like MIFARE/NTAG2xx, etc.
Three interface options: I2C, SPI, and UART, configured via jumpers and switches
Introduce the control pin, for easily connecting with host boards like STM32
Comes with development resources and manual (examples for Raspberry Python/C, STM32)
Specifications:
NFC controller: PN532
Operating voltage: 3.3V/5V
Operating frequency: 13.56MHz
Communication interfaces: I2C, SPI, UART (default)
Default baudrate: 115200 bps
Operating modes:
reader/writer mode supporting ISO/IEC 14443A / MIFARE scheme
reader/writer mode supporting FeliCa scheme
reader/writer mode supporting ISO/IEC 14443B scheme
card operation mode supporting ISO 14443A / MIFARE scheme
card operation mode supporting FeliCa scheme
card operation mode supporting ISO/IEC18092, ECM340 point-to-point
Applications:
Contactless payment system
Bluetooth and WiFi devices chaining
Social sharing function like sharing contacts, photos, and videos
Smart phone NFC app
Package Included: Raspberry Pi is NOT included.
PN532 NFC HAT x1
MIFARE Classic 1K Card x1
