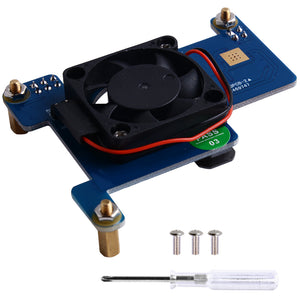

Power Over Ethernet(PoE) HAT Board with 3007 Cooling Fan for Raspberry Pi 4B/3B+
Tax included.
Raspberry Pi does not include in the package
??/span>
Descriptions:ï»?/e>
The Power-over-Ethernet (POE) Module offers a convenient and cost-effective way to deliver power to your device.
The module allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source.
The module is suitable for any space limited PoE applications such as IP cameras, biometric readers, RFID, wireless access points, HDBaseT extenders, VOIP phones, networked audio etc.
It's tiny size is a perfect match to the Rapberry Pi 4B and 3B+ in IOT and building automation applications.
It delivers clean and reliable power to the latest Pi 4.
??br>?ŠWarning:
PoE power output must be within the budget of the switch when powering multiple boards!!! STANDARDS COMPLIANT POWER OVER ETHERNET SWITCH REQUIRED!!!
The network switch or power sourcing equipment (PSE) must be compliant with the IEEE 802.3af or 802.3at PoE standard, particularly section 33.4.1 with regards to PSE electrical isolation of the leads.
'Passive PoE' (DC 24V or 48V) is not standards compliant and may cause damage to equipment.
Do not use this product in an enclosed case without active aircirculation!!
Features:
??Easy to assemble
??span style='font-size: 14px;'> Compatible With: Raspberry Pi 4 Model B / 3 Model B+
??Built-in Cooling Fan
??Support IEEE 802.3af or 802.3at PoE standard
Specifications:
??br> Input: IEEE 802.3af Compliant PoE
Output: 5V +-5% up to 2.5A*
Protection Circuitry: Transient Overvoltage, Undervoltage Lockout, Thermal Shutdown, Foldback Current Limiting
Active airflow and adequate cooling required for stable continuous operation at high load.
Weight: 30g
??br>Package Included:
??br> 1 x Power-Over-Ethernet(PoE) Hat with 3007 Cooling Fan??/span>
3 x M2.5*9+6 Copper Stick??/span>
3 x M2.5 Screws??/span>
3 x M2.5 Nuts??/span>
1 x Aluminum Heat Sink??/span>
1 x Screw Driver??/span>
??br>How to Use:
Paste aluminum heat sink to the chip on PoE HAT.
Fixed copper sticks to RaspberryPi with M2.5 screws.
Install PoE HAT onto the 40-pin GPIO header.
Fixed PoE HAT to Raspberry Pi with nuts??span style='font-size: 14px;'>.
?Š Insert MicroSDcard with properly flashed OS, Attach Ethernet cable from a 802.3af PoE switch.
