Programmable Smart Temperature Control Fan and Power Expansion Board For Raspberry Pi
Tax included.
Features:
1. Width voltage input: 6V~14V' With power switch
2. Output: DC 5V 4A with two channel outputs:
* OUT1 for external device such as servo, motor, robots, mechanical arm, intelligent card etc. (output interface: HT3.96);Max current is 2A, and can be programmed via GPIO programing to control the output of power supply; please refer to SAMPLE CODE 1;
* OUT2 (GPIO output for raspberry pi);Max current is up to 4A if the OUT1 be closed; CAN'T be programming control, it will be output to raspberry pi directly if the switch be turned on;
3. Built-in temperature sensor, with active cooling fan, you can control flexibly the ON/OFF of mini fan via I2C command and GPIO programming, please refer to SAMPLE CODE 2;;
Temperature range and accuracy:
-25 ??~ + 100 ??when the ± 2 ??br />-55 ??~ +125 ??when the ± 3 ??br />4. Cooling Fan can be replaced, please refer to FAN SPECIFICATIONS;
5. Standard HAT size.
Fan specifications:
- Side length is 30mm;
- Thickness is 7mm;
- Parameters: Voltage 5V, current 0.15A, speed 1OOOOR.P.M, noise 25dB, air volume 2.95CFM
Notes:
The Raspberry Pi main board is not included.
Click for more info.

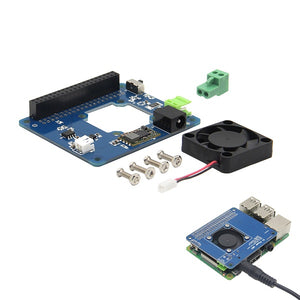

Packing Included:
1 x Board
1 x Mini fan (with install screws)
1 x HT3.96-2P Male head
