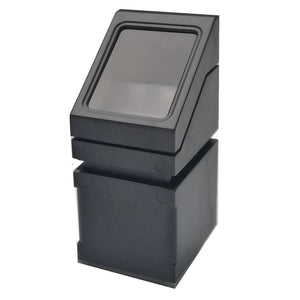

R307 Optical Fingerprint Reader Module Sensor Finger Detection Function

R307 Optical Fingerprint Reader Module Sensor Finger Detection Function

  • Save R 464.40
Tax included.
SKU:


Features :

Integrated image collecting and algorithm chip together, ALL-in-One
Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks

Low power consumption, low cost, small size, excellent performance
Professional optical technology, precise module manufacturing technics
Good image processing capabilities, can successfully capture image up to resolution 500 dpi
Finger  detection function.


Specification :

Type: Optical
Sensor Life: 100 million times
Static indicators: 15KV
Backlight: Blue
Interface: USB2.0/UART(TTL logical level)
RS232 communication baud rate: 9600BPS~115200BPS changeable
Image Capture Surface 15×11(mm)
Verification Speed:  0.2 sec
Scanning Speed: 0.3 sec
Character file size:  256 bytes
Template size:  512 bytes
Storage capacity: 1000
Security level: 3 (1,2,3,4,5(highest))
False Acceptance Rate (FAR) :≤0.0001%
False Rejection Rate (FRR): ≤0.1%
Resolution 500 DPI
Voltage :4.2--6VDC (or 3.3V)
Working current: Typical ≤75mA
Matching Method:  1: N
Operating Envirement Temperature: -20 to 50 degrees


R307 fingerprint module size chart


R307 fingerprint module circuit board diagram





3.3VDC power may be selected to supply when short ciucuit as the following drawing.
Caution: Operating carefully, and R307 will be damaged when wong connection.




Package Includes :

1 x Fingerprint Reader

You can download the R307 user manual from this website link:

Details Pictures :



















,,,,,,,,
