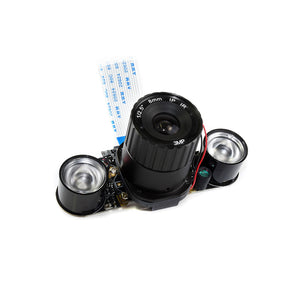

RPi IR-CUT Camera(B) for Raspberry Pi 4B/3B + OV5647-5million Pixels Adjustable Focus

Size Conversion

Inches

Centimeters

Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.

Features:

Raspberry Pi Camera, supports all revisions of the Pi
Embedded removable IR-CUT filter, eliminating color distortion in the daylight
Comes with infrared LED, supports night vision
5 megapixel OV5647 sensor
Adjustable focus distance

Specifications:

500 million pixels
Photosensitive chip OV5647
Adjustable shooting focus distance

Camera parameters:
CCD size : 1/4inch
Aperture (F) : 1.2
Focal Length : 8mm
Angle of View (diagonal) : 40 degree
Sensor best resolution : 1080p
??span class='tlid-translation translation' lang='en'>
4 screw holes:
Used for attachment
Provides 3.3V power output
Supports connecting infrared LED and/or fill flash LED
Dimension: 31mm x32mm

Note:
1. to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
2. the actual image pixels is 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.
??/b>
?ŠManual
?ŠFAQ
??b>
?ŠPackage Included:
??/span>
RPi IR-CUT Camera (B) ? 1
Infrared LED Board (B) ? 2
15PIN FFC? 1
