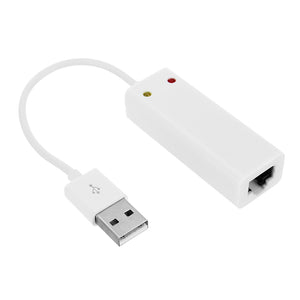

RTL8152 100Mbps USB 2.0 to RJ45 Lan Network Ethernet Adapter Card
RTL8152 100Mbps USB 2.0 to RJ45 Lan Network Ethernet Adapter Card
The USB to Ethernet controller has been designed to provide a small form factor solution that enables embedded system designers to deliver Ethernet connectivity while leveraging the proliferation of USB 2.0 technology.
It features a USB interface to communicate with a USB Host Controller and is compliant with USB specification V1.1 and V2.0. Integrates on-chip Fast Ethernet for MAC and PHY, which is IEEE802.3 10Base-T and IEEE802.3u 100Base-TX/ 100BASE-FX compatible.It can be used in any embedded system with a USB host microcontroller that needs a twisted pair physical connection or fiber PECL interface to external 100Base-FX optical transceiver module.
Features:
Chipset :RTL8152
Switch 10Mbps or 100Mbps network automatically
Half/Full duplex 10/100Mbps operation
Support full duplex flow control(IEEE 802.3X)
Support all USB standard commands
Support suspend/resume detection logic
Compliant to USB interface verison 1.0/1.1/2.0/3.0
Support 10Mbps N-way auto-negotiation operation
Specifications:
Network Standards |
EEE 802.3: 10Base-T |
||
Data Transfer Rates |
|
||
Host Interface |
USB2.0 (1.1 Compliant) |
||
Network interface |
Female RJ45 Jack |
||
Operating System |
Windows 2000, XP, Vista |
||
Dimensions |
58 x 21 x 15 mm(L x W x H) |
||
Cable |
150mm |
||
Weight |
30g |
||
Housing Material |
PC |
||
Working Environment |
Operation temperature -10 – 60 degree |
Package:
1X USB to Ethernet Lan RJ45 Network Card.
