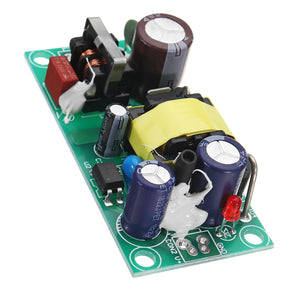

SANMIM 1A 12W AC 220V To DC 12V Switching Power Supply Module Isolation Switch Converter Step Down Module

Features:



-The product is easy to install and can be used with the VH3.96 terminal or pin directly on the motherboard.

-The four corners have fixed mounting holes to prevent the product from being powered off due to movement and vibration. The diameter of the fixing holes is 3.2mm.

-Worldwide universal input voltage: 85-264V AC or 110-370V DC

-High efficiency, high power density, low output ripple, high output voltage accuracy

-High isolation between input and output

-Overcurrent protection, short circuit protection and temperature protection

-Output built-in LC type filtering, no external filter circuit is required



Parameters Introduced:



Input voltage : AC 85 To 264V / DC 110-370V

Output voltage: DC12V (± 0.2V)

Output current : 1A

Power :12W

Frequency Range: 47-63

Output voltage accuracy: 1%



Package Included:



1 x Precision Switch Power Supply Module
