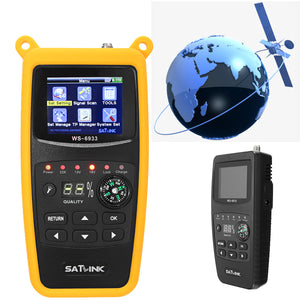

Satlink WS-6933 DVB-S2 FTA Digital Satellite Finder Meter LCD Flashlight
Tax included.
Features:
The device finds the desired satellite in seconds.
The rear flashlight function can provide lighting.
The Satlink WS-6933 HD is a compact Satellliten Finder.
The device has a static NIT recognition for safe identify a received satellite signal.
If a satellite found an audible sound - signal and the measured values are displayed.
Satellite search, the satellite dish can be in contrast to traditional instruments turned very quickly.
Specification:
Size: Approx. 7.7 x 17 x 3.5cm/ 3.03 x 6.69 x 1.37"
Plug Type: EU plug (sent with an adapter according your country)
Input Frequency: 950~2150MHz
Input Level: -65~ -25dBm
Band Switch Control: 22KHz
LNB Supply: 13v/18v, IMAX.300mA
Demodulation Type: QPSK/ 8OSK/ 16APSK/ 32APSK
Symbol Rate: 2<Rs<45Mband (SCPC/MCPC)
LCD Type: TFT Positive transflective
Number Of Dots: 240(RGB) x 320
Active Area(WxH): 36.72 x 48.96mm²
Connector: USB
Data Protocol: USB to RS-232
Li-ion Battery: 7.4v/ 800mah
Output: DC 12V/ 1A
Input: 100-240V AC, 50/60Hz
Power Consumption: MAX. 5W
Package Included:
1 x Signal Finder Meter
1 x Protective Rubber Cover
1 x Power Adapter
1 x USB Cable
1 x Lanyard
1 x User Manual
Detail Pictures:

Detail Pictures:
