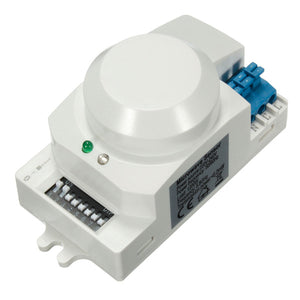

SK-600 AC 220V-240V 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch
Tax included.
Description:
SK-600 AC 220V-240V 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch
Specification:
Power supply: 220-240V AC
Power frequency: 50/60Hz
Max load: 1200W
HF system: 5.8GHz CW radar, ISM band
Transmission power: <0.2mW
Power consumption: Approx. 0.5W
Installation : Indoors, ceiling mounting
Reach: 2-10m(radii.), adjustable
Time setting: 10sec to 30min
Detection angle: 360°
Light control: 2-2000LUX
Size: 85x38x40mm
Power frequency: 50/60Hz
Max load: 1200W
HF system: 5.8GHz CW radar, ISM band
Transmission power: <0.2mW
Power consumption: Approx. 0.5W
Installation : Indoors, ceiling mounting
Reach: 2-10m(radii.), adjustable
Time setting: 10sec to 30min
Detection angle: 360°
Light control: 2-2000LUX
Size: 85x38x40mm
Note: The high-frequency output of this sensor is <0.2mW that is just one 5000th of the transmission
power of a mobile phone or the output of a microwave oven.
Package includes:
1 x Microwave Radar Sensor Switch
2 x Screws
1 x User Manual
2 x Screws
1 x User Manual
Details pictures:
