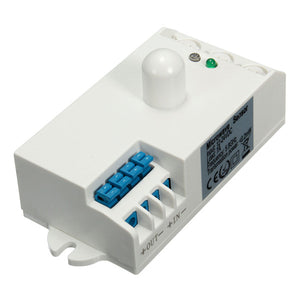

SK-807-DC DC 12V-24V 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch
Tax included.
Description:
SK-807-DC DC 12V-24V 5.8GHz Microwave Radar Sensor Body Motion HF Detector Light Switch
Specification:
Power supply: 12-24V DC
Output power: 12-24V DC
Max load: 7A
HF system: 5.8GHz CW radar, ISM band
Transmission power: <0.2mW
Power consumption: Approx. 0.5W
Installation : Indoors, ceiling mounting
Reach: 1-10m(radii.), adjustable
Time setting: 10sec to 30min
Detection angle: 360°
Light control: 2-2000LUX
Size: 85x38x40mm
Note: The high-frequency output of this sensor is <0.2mW that is just one 5000th of the transmission
power of a mobile phone or the output of a microwave oven.
Output power: 12-24V DC
Max load: 7A
HF system: 5.8GHz CW radar, ISM band
Transmission power: <0.2mW
Power consumption: Approx. 0.5W
Installation : Indoors, ceiling mounting
Reach: 1-10m(radii.), adjustable
Time setting: 10sec to 30min
Detection angle: 360°
Light control: 2-2000LUX
Size: 85x38x40mm
Note: The high-frequency output of this sensor is <0.2mW that is just one 5000th of the transmission
power of a mobile phone or the output of a microwave oven.
Package includes:
1 x Microwave Radar Sensor Switch
2 x Screws
1 x User Manual
2 x Screws
1 x User Manual
Details pictures:
