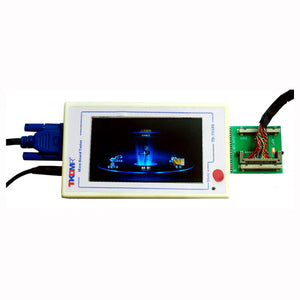

TV160 Full HD LVDS Turn VGA (LED/LCD)TV Mainboard Tester Tools Converter With Five Adapter Plate
Tax included.
Features:
1. Equipped with a 4.3 inch display screen, it can display the LVDS image directly from the motherboard, supporting External VGA.
2. It supports the LVDS signal with different resolution ratios (60 Hz, 120 Hz and 240 Hz) of single or double shielded wire.
3. It outputs a uniform VGA signal (1280 * 720/60 Hz), which can be connected to various displays that support CRT, liquid crystal and TV display (Favorable Compatibility).
4. The input interface is equipped with antistatic design with better antistatic capacity.
5. Convenient conversion of various LVDS formats.
6. wide power input, with adapter 5 V-12 V.
Instructions for use:
1. First connect the motherboard to the on-screen line conversion board, pay attention to the correct line order, turn on the TV motherboard, and the screen line conversion board indicator is bright, indicating that the motherboard and screen board are connected correctly, otherwise check again.
2. When the screen conversion board and the motherboard are connected correctly, the screen conversion board is raised and inserted into the LVDS converter. TV board and converter are all included.
3. When the image display is not normal, press the mode switch button to switch between different modes. Until the image is normal.
4, the converter supports 60 Hz, 120 Hz, 240 Hz various LVDS formats, such as motherboards with two screen lines, only need to connect the Main screen to the HD conversion board, the other line of the screen should not be connected, you can also switch to the desired image .
Table of parameters of resolution and format of the converter
Resolution LVDS format No. Resolution LVDS format:
1 800 * 600 VASA, JEIDA 8 1280 * 720 VASA, JEIDA
2 1024 * 600 VASA, JEIDA 9 1600 * 900 VASA, JEIDA
3 1280 * 800 VASA, JEIDA 10 1400 * 1050 VASA, JEIDA
4 1280 * 1024 VASA, JEIDA 11 1680 * 1050 VASA, JEIDA
5 1366 * 768 VASA, JEIDA 12 1600 * 1200 VASA, JEIDA
6 1024 * 768 VASA, JEIDA 13 1920 * 1200 VASA, JEIDA
7 1440 * 900 VASA, JEIDA 14 1920 * 1080 VASA, JEIDA
Package included:
1 x Converter
5 x Board
1 x Converter
5 x Board
Details pictures:
