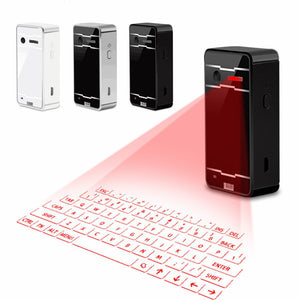

Wireless Bluetooth Laser Virtual Keyboard Projection Keyboard For Android IOS PC
Tax included.
Specifications:
1. Keyboard light source: Red laser diode
2. Keyboard layout: About 19 mm tilt, QWERTY layout
3. Keyboard size: 100 x 240 mm
4. Size:78x40x20mm
5. Projected keyboard location: 100 mm distance from device
6. Required projection surface: Non-reflective, opaque flat surface
7. Detection rate: 350 Characters per minute
8. Operative surface: Any flat surface
9. Work environment: 0 ~ 35 Deg / 90 % RH
10. Save environment: -5 ~ 35 Deg / 90 % RH
11. External power source: USB power / less than 5V 1A
12. Power source: Built-in Li-polymer rechargeable battery
13. Battery capacity:Polymer rechargeable battery, 1000mAH(Max)@ 3.7V
14. Battery working time: 200 min
15. Battery charging: 120 min
16. USB interface:USB 1.1 and 2.0, USB HID Ver. 1.0
17. Bluetooth:V3.0 (class 2), HID Profile Ver. 1.0
18. Frequency range: 2402 - 2480 MHz
19. Channel: 79
20. Modulation: GFSK
21. Compatible Software: Windows XP / Vista / 7 / 8, Windows Phone 7, IOS (iPhone 4 / 5S / 5C and iPad),
Android 3.1 and higher, MAC OS X
22. Not recommended for use in direct sunlight
Features:
1. Compact ultra-portable for mobility.
2. English QWERTY keyboard layout.
3. Easy connection via Bluetooth 3.0 HID profile or USB.
4. Lithium-ion Polymer rechargeable battery, Mini-B Type charge interface.
5. Detection rate over 400 characters per minute and low power consumption.
6.. Can be operated via USB cable on your laptop / PC.
7. Compatible with latest operating systems: Windows XP/ VISTA/7/8, wINDOWS pHONE 7, ios 4/5/6
(iPhone and iPad) Android 3.1 higher, Mac OS X
8. Color:Black,Sliver,White
Package Included:
1 x Laser Projection Keyboard
1 x USB Cable
1 x User Manual
How this product works:
When the user presses a key on the projected, the infrared layer is interrupted. This produces IR
reflections that are recognized by the sensor in three dimensions, Allowing the system to assign a
coordinate.
Laser Keyboard Use:
FN+B Clear the current Bluetooth pair and search status
Note: Please restart the device after clearing the current Bluetooth search search status so that
Bluetooth start new searching.
FN+O Switch on/ off key stroke sound
Adjusting keyboard brightness:
FN + "↑ ": Increase the keyboard brightness
FN +"↓" : Lower the keyboard brightness
Note: When users press every key on the projected keyboard, the device will make "beep" key
stroke sound.
Notice:
Because this product uses infrared rays, strong infrared radiation from direct or reflected sunlight or from tungsten
(halogen or incandescent) lighting may cause operating error.
