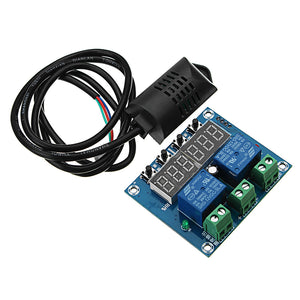

XH-M452 Automatic Constant Temperature Humidity Control Module Digital Display Dual Output

Feature:



Name: Temperature Humidity Control Module

Model: XH-M452

Power voltage: DC12V

Temperature range: -20°C to 60°C

Humidity range: 00% - 100% RH

Detection probe: Integrated sensor

Output type: Relay Output

Output capacity: up to 10A

Net weight: 69g (with sensor)

Size: 65 x 55 x 28mm

How to set:



Set start temperature +: Under normal display, press and hold "+" key for 3 seconds, start temperature value flashes, press +/- key to set the value, return to detection temperature display automatically after 5 seconds without operation.

Set the stop temperature -: Under normal display, press and hold "-" key for 3 seconds, stop the temperature value flashes, press the +/- button to set the value.

Restore Factory Settings: At the same time press the temperature "-" key and humidity "+" key for 3 seconds, LED display 888 888.



Heating / cooling mode setting method:



Set the essentials: start temperature

Set the essentials: start temperature> stop temperature (the program automatically determine the working mode is cooling mode)

Setting method:

Set the start temperature: Long press the "+" button, start the temperature flashing, set the start temperature value by +/- key

Set the stop temperature: Long press the "+" button, stop the temperature flashing, set the stop temperature value by +/- key



Package includes:



1 x Temperature Humidity Control Module
