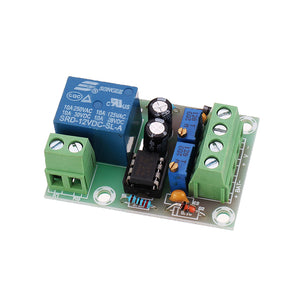

XH-M601 12V Battery Charging Module Smart Charger Automatic Charging Power Outage Power Control Board
Tax included.
Feature:
Product Name: 12V charger power control board
Product model: XH-M601
Supply voltage: 13.8V-14.8V
Relay closing voltage: 12.4V
Relay disconnection voltage: 14.8V
Voltage error: ±0.1V
Voltage detection method: DC voltmeter
Charging type: 12V battery
Potentiometer adjustment: RP1 RP2 (careful adjustment)
Product size: 50 x 32 x 18mm (LWH)
Package includes:
1 x 12V charger power control board
RP1: Adjust the battery starting charging voltage (low voltage setting: clockwise high, counterclockwise low) factory value is 12.4V
RP2: Adjust the battery to disconnect the charging voltage (low voltage setting: clockwise high, counterclockwise low) factory default is 14.8V
Package includes:
1 x 12V charger power control board
