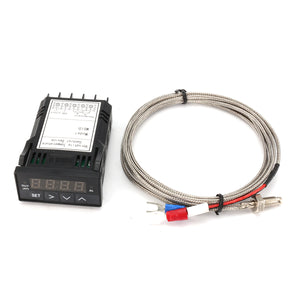

XMT7100 Digital PID Temperature Control Controller with K Type Thermocouple
Tax included.
Features :
Relay and Control output indications.
Alarm: Process high/low alarm.
Easy to install and operate.
Ultra-bright RED LED digits display.
Input type can be RTD input (Cu50, Pt100) or thermocouple input (T, R, J, B, S, K, E and Wre-Wre25).
This instrument can display ºC or ºF.
Artificial intelligence enhanced PID algorithm for accurate and stable temperature control.
Auto-tune function can find the best PID parameter automatically.
On/Off control mode for refrigerator, motor and solenoid valve control application.
Limit control mode for safety protection and special applications.
The PID, on/off, or limit control output can be configured by user for either relay contactor or SSR control.
5 kinds of Control modes.
Type-K Thermocouple (Length=2 meters; 0ºC ~ 800ºC) included.
Ideal for use with:
Uses in Swimming Pool, Aquarium, Refrigerator, Chiller, Furnace, Heating, Cook Device, Various Test and Industrial Equipment...etc.
Specification :
Material: Plastic
Color: Black
Modle: XMT7100
Measuring Range: -200~1300??br />Operating voltage: 12V DC
type: Temperature
Control mode: Intelligent temperature control regulator
Installation type: embedded
Display range: -1999 ~ 9999
Display Type: RED LED Digits Display
Power Source: 12V DC
Display Selectable: ºC or ºF
Sensor Input: T,R,J,B,S,K,E,WRe3-25,Cu50,Pt100
Accuracy: 0.2% FS
Resolution: 1ºC, 1°F, or 0.1°C, 0.1°F with Pt100,LED Indicators
Control mode: PID, On-off, Limit
Output mode: Relay contact: 3A at 240VAC, SSR: 8VDC, 40 mA.
Power consumption: <2 Watt
Size:
Panel Cutout Size:
44 mm x 21 mm/2*0.8''
Dimensions:
75mm (W) x 47mm (H) x 23mm(D)/3*1.9*0.9''
Wire length: 188cm/74''
Package includeds :
1 x XMT7100 Temperature Controller
1 x K Type Thermocouple
1 x User Manual
1 x User Manual
Details pictures :
