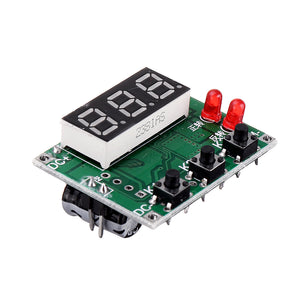

YF-14 Mini DC Deceleration Motor Forward and Reverse Speed Controller Module 3.3-12V DC Motor Control Module

Features:



- Control Module can control DC Motor Forward and Reverse rotation

- Can be used for toy car modification

- Suitable for the DC motor within 3.3v ~12V 0.8A , and the instantaneous current cannot exceed 1.2A

- Adjustable from 0.1 seconds to 99.9 seconds

- High quality electronic components, stable working performance



Specification:



Product model: YF-14

Fit : DC motor within 3.3v ~12V 0.8A,Instantaneous current≤1.2A

Time range: 0.1 seconds to 99.9 seconds adjustable



Function List:



P-1: CW A seconds after power on; stop C seconds; begin to CCW B seconds to stop.

P-2: has a signal, CW A seconds; stops C seconds; starts CCW B seconds to stop.

P-3: signal does not act, the signal disappears; CW A seconds; stops C seconds; starts CCW B seconds to stop.

P-4: has a signal, CW A seconds to stop; signal disappear; CCW B seconds to stop.

P-5:give a  signal,CW A seconds to stops ; gives a signal again; CCW B seconds to stop.

P-6:after power on, CW  A second;  stop for C seconds ; CCW B seconds; stop for C seconds ; infinite loop



Key Setting Instructions:



K1: settings

K2: plus

K3: subtraction

Press K1 for the first time,(exceed 1Seconds are effective)Show:P --1:K2K3 :regulation mode

Press K1 for the second time ,K2 and K3 Adjust the first time A

Press K1 for the third time ,K2 and K3 Adjust the second time B

Press K1 for the forth time ,K2 and K3 Adjust the third time C

Press K1 for the fifth time ,Into standby mode

Long press K3 in standby mode, can permanently closed/Open display, switch low power mode.



Package Included:



1 x YF-14 Mini DC Deceleration Motor Forward and Reverse Control Module
