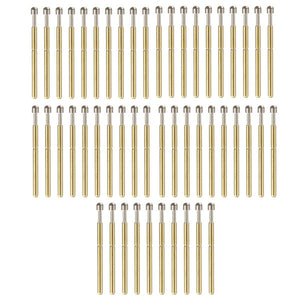

50pcs P75-D2 Dia 1.02mm 100g Spring Test Probe Pogo Pins



Needle: phosphorus brass gilded

Spring: Stainless steel wire

Casing: Brass gold plated


D head shape (round) - adapted to the finger pad and ensure that does not leave teeth marks

Needle diameter	shank diameter	Needle total length	Drill size	needle sheath diameter	Minimum test distance	Full Stroke	Spring Pressure	Current Rating	Current Resistance
1.02mm	0.74mm	16.5mm	1.4mm	1.32mm	1.91mm	2.50mm	100g	3A	50mΩ

Pin sets sold separately, the needle sheath diameter of 1.32mm
