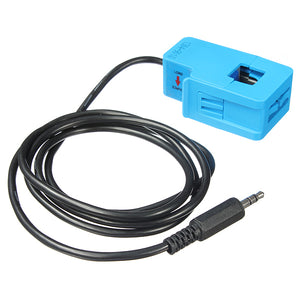

AC 100A SCT-013-000 Non-invasive Split Core Current Transformer

Description :

Non-invasive Split Core Current Transformer AC Current Sensor 100A SCT-013-000

Non-invasive current transformer
Non-linearity ±3%(10%-120% rated input current)
Non-linearity ±3%(10%-120% rated input current)
Suitable for  lighting equipment,AC motors,air compressors,monitoring ,current measurement,and protection
Two form of output current, voltage (voltage output built-in the sampling resistor)

Specification :

Model : SCT-013-000
Reference project : OpenEnergyMonitor
Core Material : Ferrite
Dielectric  Strength : 6000V AC/1min
Input Current : 0A-100A
Anti-flaming rate : UL94-V0
Mechanical strength : opening and closing times, no less than 1000 times (20 ??
Output Plug : 3.5mm
Opening Size : 13 x 13mm
Dielectric  Strength : 6000V AC/1min
Working Temperature : -25-70°C
Cable Length : 110cm

Package Includes :

1 x Split Core Current Transformer SCT-013-000

Details pictures :
