DC 24V 21WA 43WA Brass Electric Solenoid Valve Normally Closed Air Water Control
Tax included.
Description:

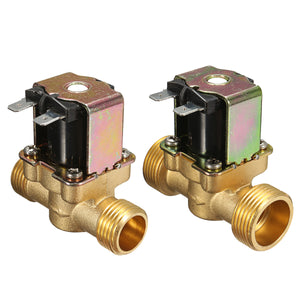

DC 24V 21WA 43WA Brass Electric Solenoid Valve Normally Closed Air Water Control
1#=SEN-SZ21WA normal temperature
2#=SEN-SZ43WA normal temperature
Specification:
Model:SEN-SZ21WA normal temperature
Working Temperature:0-80??br />Material:brass
Nominal Diameter: G1/2”
Voltage:DC 24V
Working Current:0.24A
Working Pressure Range:0.02-0.8Mpa
Power:5.6W
Coil Resistance:100Ω
Insulation Resistance bigger than 100MΩ
DC Resistance: 27Ω±5%(20??
Electric Strength:1000V,50Hz, 1min between conductive metal and non-conductive mounting metal
Using Range:Fluid control, normally close
Life:0.3 million times
Weight:213g
Model:SEN-SZ43WA normal temperature
Working Temperature:0-80??br />Material:brass
Nominal Diameter: G1/2”
Voltage:DC 24V
Working Current:0.24A
Working Pressure Range:0.02-0.8Mpa
Flow range:3.0L/min~25L/min
Power:5.6W
Coil Resistance:100Ω
Insulation Resistance bigger than 100MΩ
DC Resistance: 27Ω±5%(20??
Electric Strength:1000V,50Hz, 1min between conductive metal and non-conductive mounting metal
Using Range:Fluid control, normally close
Life:3 million times
Reliability:when reach 0.01~0.02MPa, energization and outage for 5s, maintain non-cut-through for 1 hour, the valve still work normally.
Weight:231g
Features:
-This is a small zise product that easy to install.
-Made of pure brass, the product is precise and durable, no power consumption.
-Suitable for water industry and other fields such as drinking funtain,energy-efficient air -conditioning used liquid, water and oil as medium.
-Normally closed
-Layer insulation.Flow 500V when at peak,repeat 25Hz pulse leading edge about0.2~3ms. Pulse width is 40ms.No abnormality after using 2s.
Package Included:
1x Solenoid valve
