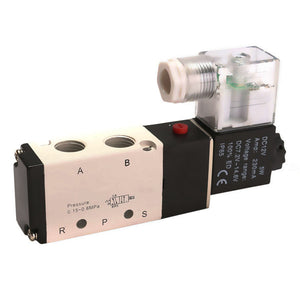

DC12V Pneumatic Aluminum Electric Solenoid Air Valve 5 Way 2 Position Valve 4V210
Tax included.
Description:
DC12V Pneumatic Aluminum Electric Solenoid Air Valve 5 Way 2 Position Valve 4V210
Specification:
Features:
1 x Pneumatic Solenoid Air Valve
More Details:
DC12V Pneumatic Aluminum Electric Solenoid Air Valve 5 Way 2 Position Valve 4V210
Specification:
| Material | Aluminum alloy |
| Size | 11.7x5.8cm/4.6*2.3 inch |
| Type | NC+NO |
| Voltage | DC12V |
| Power consumption | 4.8W?� |
| Action | Direct acting |
| Type | 5 Port 2 position |
| Lubrication | Not required |
| Pressure range | 0-1.0MPa(145psi) |
| Insulation | F Class |
| Protection | IP65 |
| Voltage range | -15% - +10% |
| Temp. range | -5 - 60??/td> |
| Max. frequency | 10 cycles/s |
| Min. activate time | 0.05second |
- Appearance, commutation, good performance.
- Automatic compensation for seal wear.
- Use of long-life.
NOTE:
Package Included:NOTE:
When installing, please note that the gas flow direction is correct and takeover
When using, strict compliance with the technical requirements, such as operating voltage, operating frequency, operating pressure,
temperature: when the machine commissioning, it is recommended to use the manual device debugging, and then power test.
temperature: when the machine commissioning, it is recommended to use the manual device debugging, and then power test.
Attention to dust, it is recommended to install exhaust outlet muffler or silencer throttle.
When connecting pipe, pay attention to only release the strap around the joint may not exceed the end face of the tooth, and pay
attention to the elimination of pipe fittings, metal particles inside the pipe, dust and oil mist.
attention to the elimination of pipe fittings, metal particles inside the pipe, dust and oil mist.
1 x Pneumatic Solenoid Air Valve
