DIY RGB RF Controller Remote Control 6803 IC 133Modes For Dream Color Chasing 5050 RGB LED Strip
Tax included.
Feature:
-This controller is design for led production which uses IC as driver, it is very useful for light box advertisement, stage light, house decorating, and so on.
-Can control a variety of light for the light source, such as: LED module, LED lights with, LED point light source, LED wall washers, glass curtain wall lights.
-Use the remote control to switch the RGB light bar mode, you can also change the RGB light bar brightness and speed.
-Touch remote performance is good, easy wiring, easy to use.
Function of controller panel:
-ON/OFF button, it can open or close led anytime.
-Play/pause button, pressing this button to pause, you can see the static affection of led.
-Adding button, to add the IC NUMBER, the most number is 1024.
-Reducing button, to reduce the IC NUMBER, the least number is 3.
-Program choosing button, up direction there are 133 programs in all.
-Program choosing button, down direction.
-Speed slow button, there are 100 step in all, the most number is 100.
-Speed quick button, the least number is 1.
Function of remote panels:
-ON/OFF: ON/OFF button, it can open or close led anytime.
-MODE: Play/pause button, pressing this button to pause, you can see the static affection of led.
-S+: Speed quick button, the least number is 1
-S-: Speed slow button, there are 100 step in all, the most number is 100
-B+: Program choosing button, up direction there are 94 programs in all.
-B-: Program choosing button, down direction.
-M-:Reducing button,to reduce the IC NUMBER,the least number is 3.
-M+:Adding button, to add the IC NUMBER, the most number is 1024.
Specifications:
Product name: Controller
Size: Approx. 92x57x25mm/3.62"x2.24"x0.98"
Working temperature: -20~60??br />Consume power: 2W
Supply voltage: DC 12V
Weight: 133g

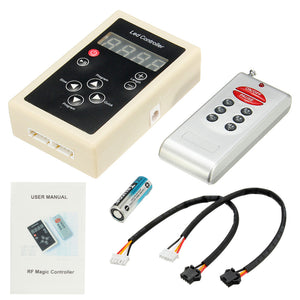

Package Included:
1x RGB controller
1x RF remote control
1x Battery
1x User Manual
