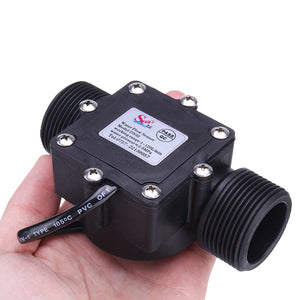

G1-1/4 1.25 Water Flow Hall Sensor Switch Meter Flowmeter Counter 1-120L/min"
Tax included.
Features:
Waterproof/Heat resistance,pressure resistance,cold resistance.
Easy to install.
Specification:
Frequency: F=4.5 * Q (L / Min) error: ± 2% voltage :3.5-24VDC/ current can not exceed 10mA, 270 output pulses/liter, F=onstant * units of flow (L / min) * time (seconds).
Flow range: 1-120L/min
Mini rated voltage: DC4.5 5-24V
Maximum current: 15 mA(DC 5V)
Working voltage range:DC 5~18 V
Load capacity: ≤10 mA(DC 5V)
Operating Temp: ≤80°C
Operating humidity: ≤35%~90%RH
Operating humidity: ≤35%~90%RH
Allow compression: Water pressure 1.75 Mpa below
Insulation resistance: >100M OHM
Storage Temperature: -25~80°C
Storage humidity: 250%??5%RH
Output Waveform: Square Wave,output pulse singal
Package included:
1 x Flow Meter
1 x Flow Meter
Details pictures:
